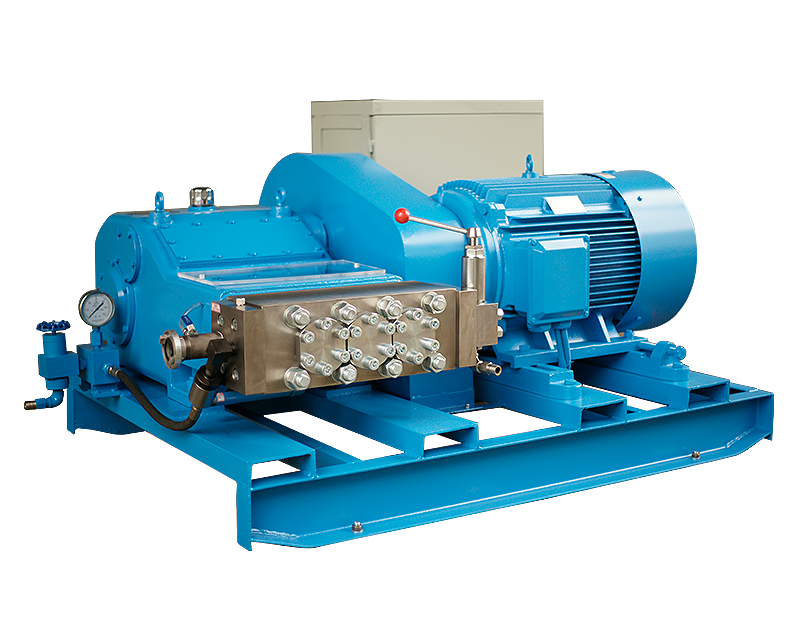

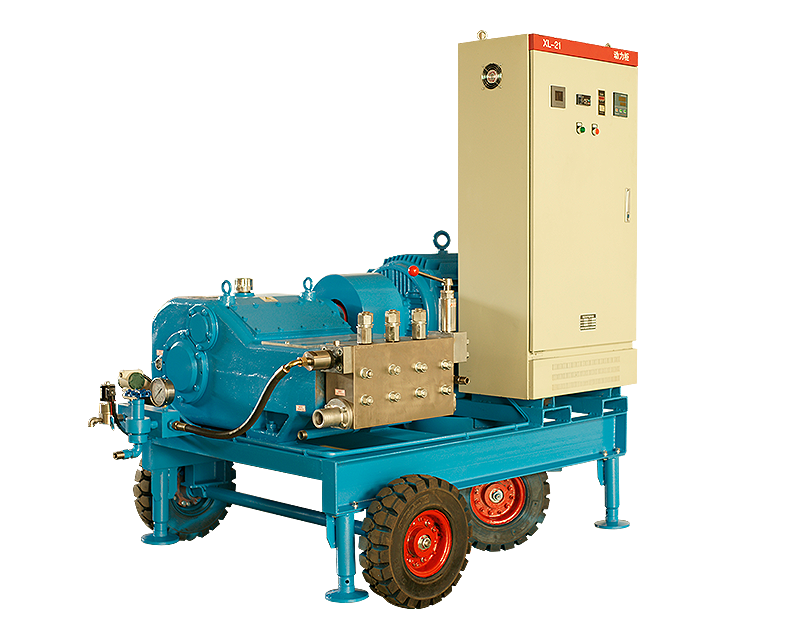

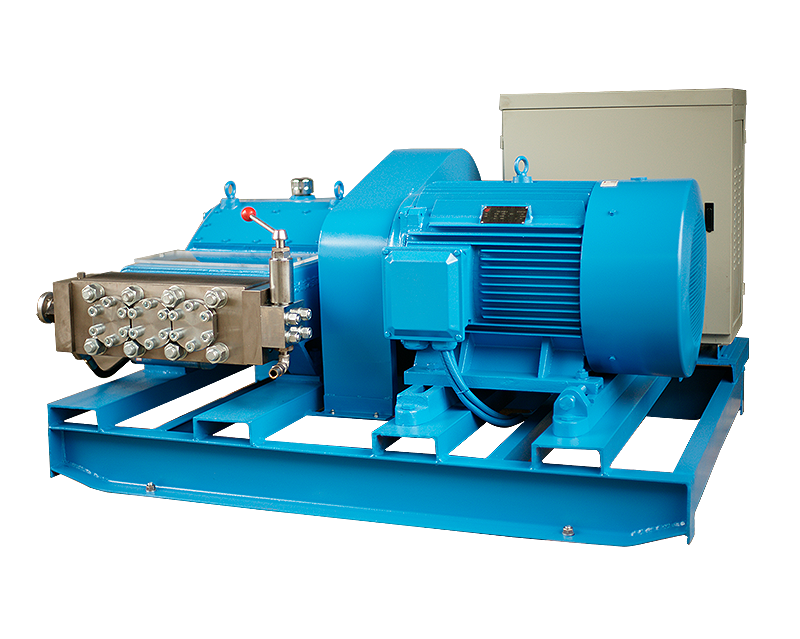

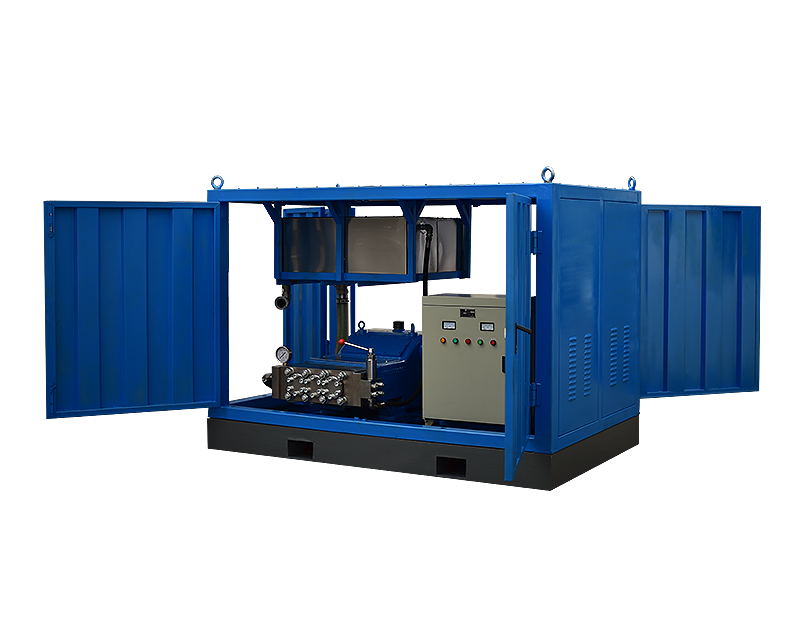

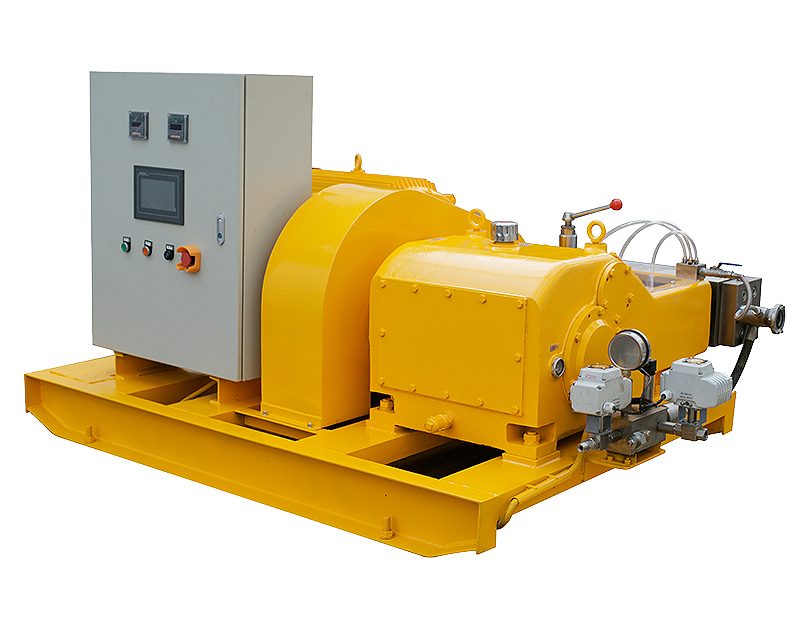

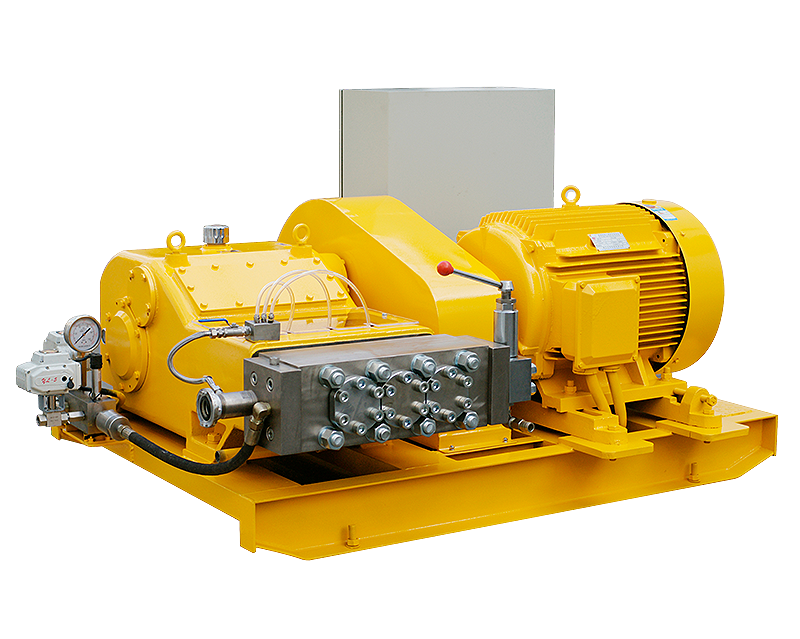

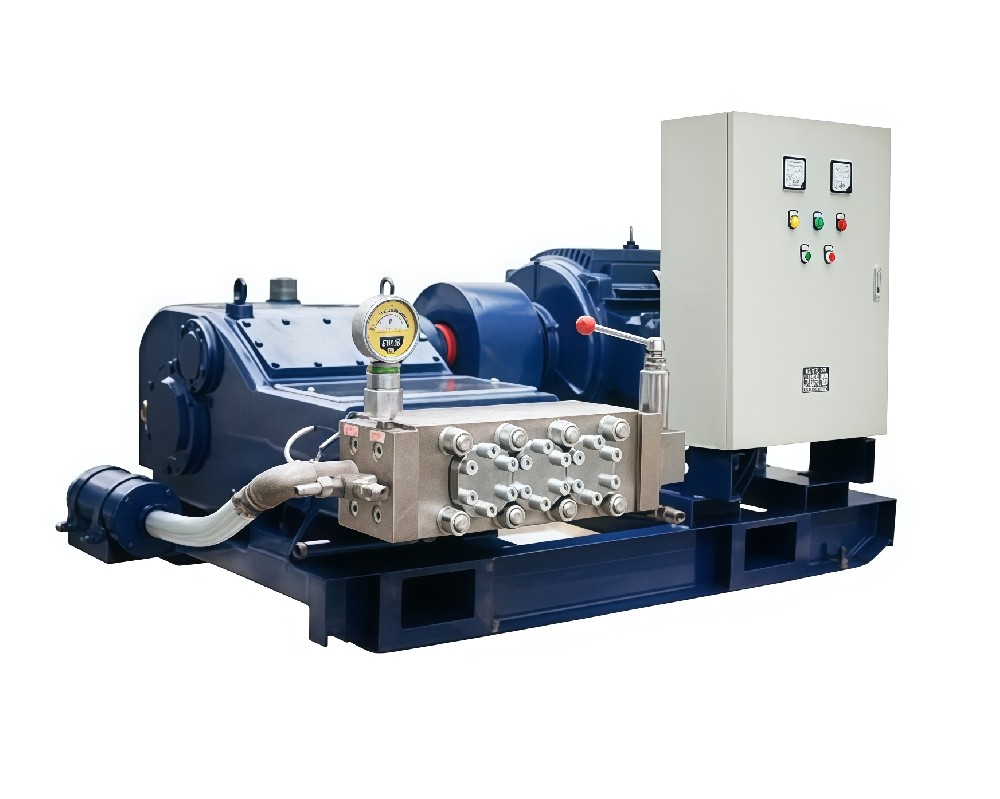

Plunger Pump

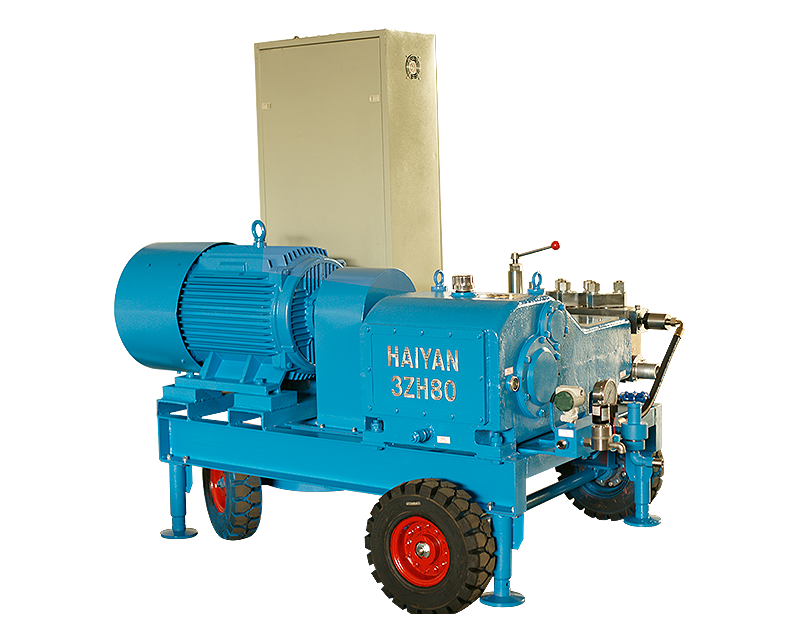

3ZH80
Stroke Length (mm) ：80
Crankcase Oil Capacity (L)：50
Pump Weight (KG)： 995
Recommended SPM for Continuous Duty： ≤390
Standard Gear Ratio：3.00
| Strokes per Minute | 75 | 125 | 175 | 225 | 275 | 325 | 375 | 425 | 495 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 16.6 | 27.6 | 38.7 | 49.8 | 60.8 | 71.9 | 82.9 | 94.0 | 109.5 | |
| Plunger Size (mm) | Rated Pressure (bar) | Rated Capacity (L/min) | ||||||||
| 21 | 1155 | 6.2 | 10.4 | 14.5 | 18.7 | 22.9 | 27.0 | 31.2 | 35.3 | 41.1 |
| 23 | 963 | 7.5 | 12.5 | 17.5 | 22.4 | 27.4 | 32.4 | 37.4 | 42.4 | 49.4 |
| 25 | 815 | 8.8 | 14.7 | 20.6 | 26.5 | 32.4 | 38.3 | 44.2 | 50.1 | 58.3 |
| 28 | 650 | 11.1 | 18.5 | 25.9 | 33.3 | 40.6 | 48.0 | 55.4 | 62.8 | 73.2 |
| 30 | 566 | 12.7 | 21.2 | 29.7 | 38.2 | 46.7 | 55.1 | 63.6 | 72.1 | 84.0 |
| 36 | 393 | 18.3 | 30.5 | 42.8 | 55.0 | 67.2 | 79.4 | 91.6 | 103.8 | 120.9 |
| 40 | 318 | 22.6 | 37.7 | 52.8 | 67.9 | 82.9 | 98.0 | 113.1 | 128.2 | 149.3 |
| 44 | 263 | 27.4 | 45.6 | 63.9 | 82.1 | 100.4 | 118.6 | 136.8 | 155.1 | 180.6 |
| 48 | 221 | 32.6 | 54.3 | 76.0 | 97.7 | 119.4 | 141.1 | 162.9 | 184.6 | 215.0 |
| 55 | 168 | 42.8 | 71.3 | 99.8 | 128.3 | 156.8 | 185.3 | 213.8 | 242.3 | 282.2 |
| 58 | 151 | 47.6 | 79.3 | 111.0 | 142.7 | 174.4 | 206.1 | 237.8 | 269.5 | 313.9 |
| 60 | 141 | 50.9 | 84.8 | 118.8 | 152.7 | 186.6 | 220.5 | 254.5 | 288.4 | 335.9 |
| 68 | 110 | 65.4 | 109.0 | 152.5 | 196.1 | 239.7 | 283.3 | 326.9 | 370.4 | 431.4 |
| 70 | 104 | 69.3 | 115.5 | 161.6 | 207.8 | 254.0 | 300.2 | 346.4 | 392.5 | 457.2 |
