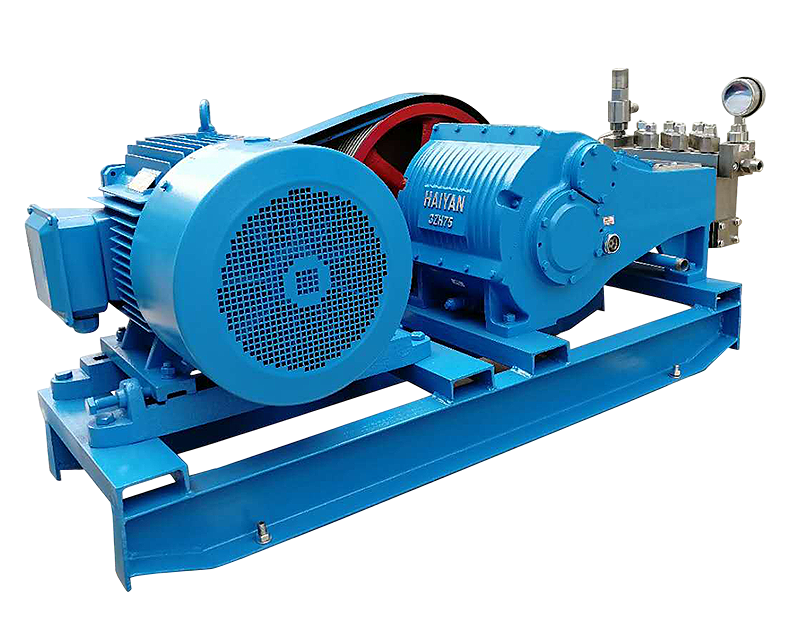

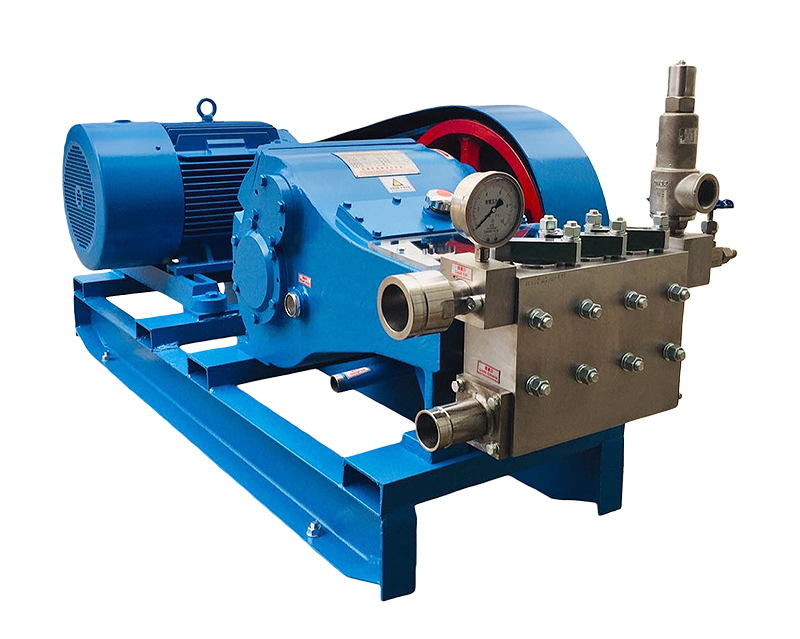

Plunger Pump

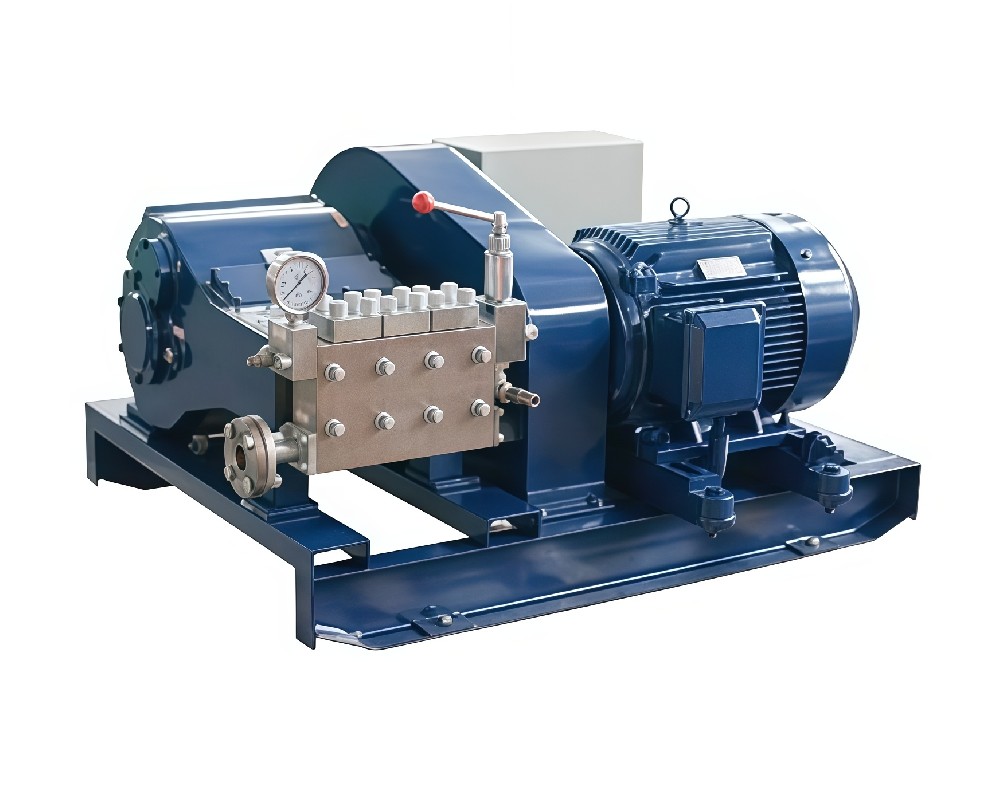

3ZH75
Stroke Length (mm) ：75
Crankcase Oil Capacity (L)：17.2
Pump Weight (KG)： 420
Recommended SPM for Continuous Duty： ≤400
Standard Gear Ratio：3.75
Optional Gear Ratio：3.16
| Strokes per Minute | 75 | 125 | 175 | 225 | 275 | 325 | 375 | 425 | 475 | 525 | 575 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 7.9 | 13.1 | 18.4 | 23.7 | 28.9 | 34.2 | 39.4 | 44.7 | 50.0 | 55.2 | 60.5 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | ||||||||||
| 14 | 1624 | 2.6 | 4.3 | 6.1 | 7.8 | 9.5 | 11.3 | 13.0 | 14.7 | 16.5 | 18.2 | 19.9 |
| 16 | 1244 | 3.4 | 5.7 | 7.9 | 10.2 | 12.4 | 14.7 | 17.0 | 19.2 | 21.5 | 23.8 | 26.0 |
| 18 | 983 | 4.3 | 7.2 | 10.0 | 12.9 | 15.7 | 18.6 | 21.5 | 24.3 | 27.2 | 30.1 | 32.9 |
| 20 | 796 | 5.3 | 8.8 | 12.4 | 15.9 | 19.4 | 23.0 | 26.5 | 30.0 | 33.6 | 37.1 | 40.6 |
| 23 | 602 | 7.0 | 11.7 | 16.4 | 21.0 | 25.7 | 30.4 | 35.1 | 39.7 | 44.4 | 49.1 | 53.8 |
| 25 | 509 | 8.3 | 13.8 | 19.3 | 24.9 | 30.4 | 35.9 | 41.4 | 46.9 | 52.5 | 58.0 | 63.5 |
| 30 | 354 | 11.9 | 19.9 | 27.8 | 35.8 | 43.7 | 51.7 | 59.6 | 67.6 | 75.5 | 83.5 | 91.5 |
| 32 | 311 | 13.6 | 22.6 | 31.7 | 40.7 | 49.8 | 58.8 | 67.9 | 76.9 | 86.0 | 95.0 | 104.0 |
| 34 | 275 | 15.3 | 25.5 | 35.7 | 46.0 | 56.2 | 66.4 | 76.6 | 86.8 | 97.0 | 107.2 | 117.5 |
| 38 | 220 | 19.1 | 31.9 | 44.7 | 57.4 | 70.2 | 82.9 | 95.7 | 108.4 | 121.2 | 134.0 | 146.7 |
| 42 | 180 | 23.4 | 39.0 | 54.6 | 70.1 | 85.7 | 101.3 | 116.9 | 132.5 | 148.1 | 163.7 | 179.2 |
| 46 | 150 | 28.0 | 46.7 | 65.4 | 84.1 | 102.8 | 121.5 | 140.2 | 158.9 | 177.6 | 196.3 | 215.0 |
| 48 | 138 | 30.5 | 50.9 | 71.3 | 91.6 | 112.0 | 132.3 | 152.7 | 173.0 | 193.4 | 213.8 | 234.1 |
| 50 | 127 | 33.1 | 55.2 | 77.3 | 99.4 | 121.5 | 143.6 | 165.7 | 187.8 | 209.8 | 231.9 | 254.0 |
| 52 | 118 | 35.8 | 59.7 | 83.6 | 107.5 | 131.4 | 155.3 | 179.2 | 203.1 | 227.0 | 250.9 | 274.8 |
| 54 | 109 | 38.6 | 64.4 | 90.2 | 115.9 | 141.7 | 167.5 | 193.2 | 219.0 | 244.8 | 270.5 | 296.3 |
| 58 | 95 | 44.6 | 74.3 | 104.0 | 133.8 | 163.5 | 193.2 | 222.9 | 252.6 | 282.4 | 312.1 | 341.8 |
| 60 | 88 | 47.7 | 79.5 | 111.3 | 143.1 | 174.9 | 206.8 | 238.6 | 270.4 | 302.2 | 334.0 | 365.8 |
| 62 | 83 | 50.9 | 84.9 | 118.9 | 152.8 | 186.8 | 220.8 | 254.7 | 288.7 | 322.7 | 356.6 | 390.6 |
| 65 | 75 | 56.0 | 93.3 | 130.7 | 168.0 | 205.3 | 242.7 | 280.0 | 317.3 | 354.6 | 392.0 | 429.3 |
| 70 | 65 | 64.9 | 108.2 | 151.5 | 194.8 | 238.1 | 281.4 | 324.7 | 368.0 | 411.3 | 454.6 | |
| 72 | 61 | 68.7 | 114.5 | 160.3 | 206.1 | 251.9 | 297.7 | 343.5 | 389.3 | 435.1 | ||
