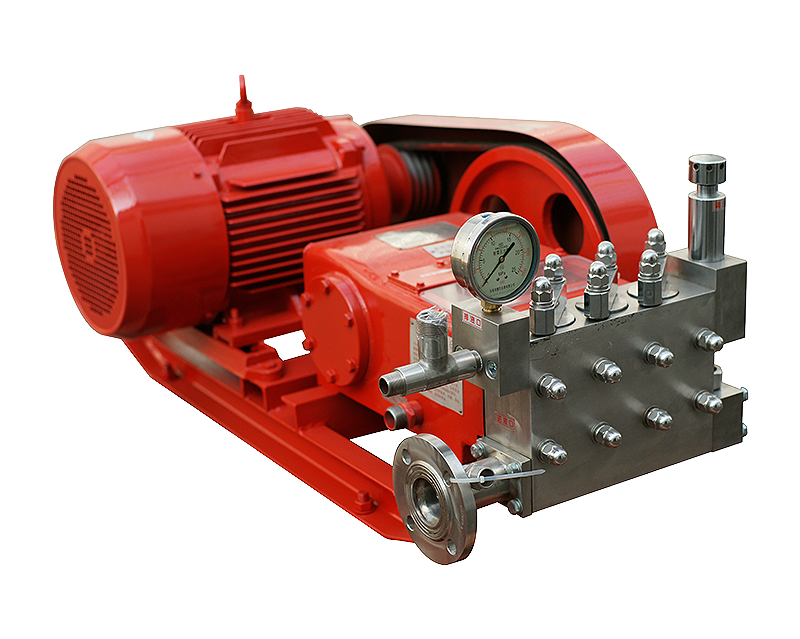

Plunger Pump

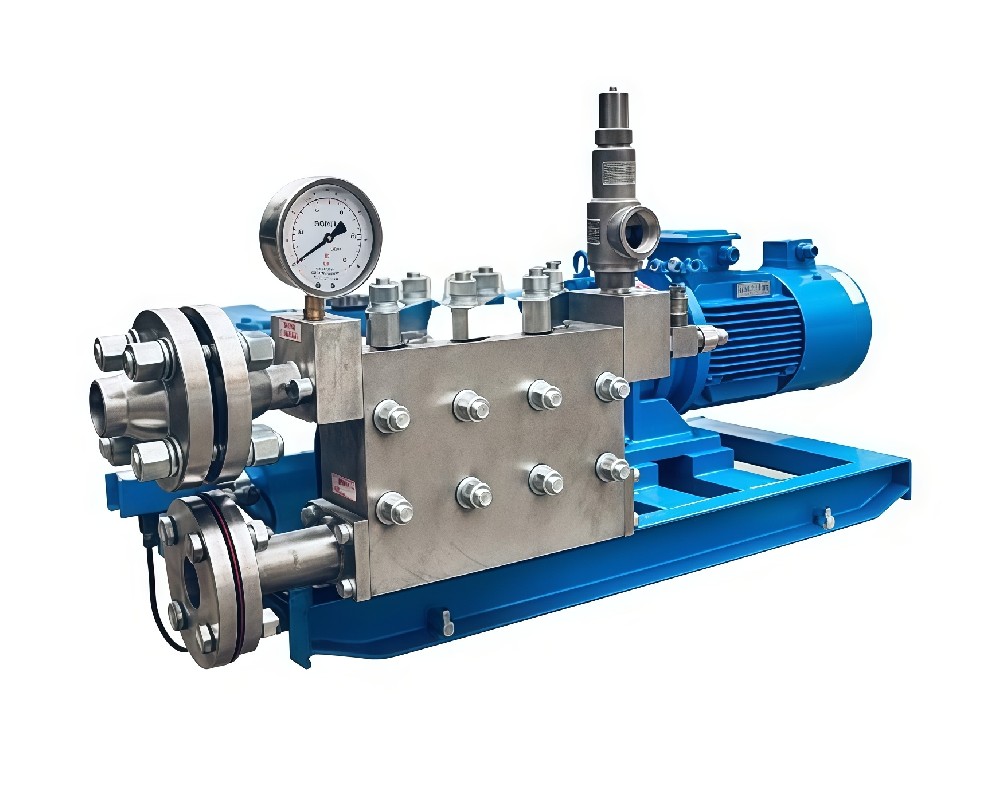

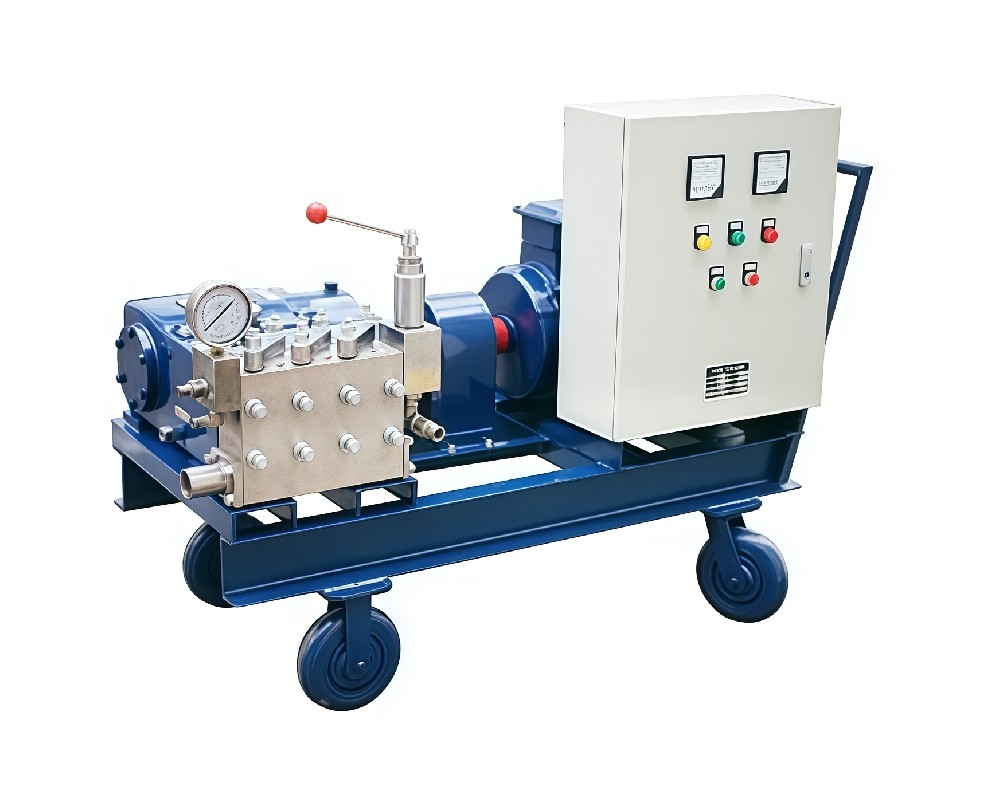

3DP40
Stroke Length (mm) ：40
Crankcase Oil Capacity (L)：3.8
Pump Weight (KG)： 130
Recommended SPM for Continuous Duty： ≤470
Standard Gear Ratio：2.88
| Strokes per Minute | 75 | 150 | 225 | 300 | 375 | 450 | 525 | 600 | 675 | 750 | 825 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 1.7 | 3.4 | 5.0 | 6.7 | 8.4 | 10.1 | 11.8 | 13.5 | 15.1 | 16.8 | 18.5 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | ||||||||||
| 12 | 884 | 1.0 | 2.0 | 3.1 | 4.1 | 5.1 | 6.1 | 7.1 | 8.1 | 9.2 | 10.2 | 11.2 |
| 16 | 497 | 1.8 | 3.6 | 5.4 | 7.2 | 9.0 | 10.9 | 12.7 | 14.5 | 16.3 | 18.1 | 19.9 |
| 18 | 393 | 2.3 | 4.6 | 6.9 | 9.2 | 11.5 | 13.7 | 16.0 | 18.3 | 20.6 | 22.9 | 25.2 |
| 20 | 318 | 2.8 | 5.7 | 8.5 | 11.3 | 14.1 | 17.0 | 19.8 | 22.6 | 25.4 | 28.3 | 31.1 |
| 22 | 263 | 3.4 | 6.8 | 10.3 | 13.7 | 17.1 | 20.5 | 23.9 | 27.4 | 30.8 | 34.2 | 37.6 |
| 25 | 204 | 4.4 | 8.8 | 13.3 | 17.7 | 22.1 | 26.5 | 30.9 | 35.3 | 39.8 | 44.2 | 48.6 |
| 28 | 162 | 5.5 | 11.1 | 16.6 | 22.2 | 27.7 | 33.3 | 38.8 | 44.3 | 49.9 | 55.4 | 61.0 |
| 30 | 141 | 6.4 | 12.7 | 19.1 | 25.4 | 31.8 | 38.2 | 44.5 | 50.9 | 57.3 | 63.6 | 70.0 |
| 32 | 124 | 7.2 | 14.5 | 21.7 | 29.0 | 36.2 | 43.4 | 50.7 | 57.9 | 65.1 | 72.4 | 79.6 |
| 34 | 110 | 8.2 | 16.3 | 24.5 | 32.7 | 40.9 | 49.0 | 57.2 | 65.4 | 73.5 | 81.7 | 89.9 |
| 36 | 98 | 9.2 | 18.3 | 27.5 | 36.6 | 45.8 | 55.0 | 64.1 | 73.3 | 82.4 | 91.6 | 100.8 |
| 38 | 88 | 10.2 | 20.4 | 30.6 | 40.8 | 51.0 | 61.2 | 71.4 | 81.7 | 91.9 | 102.1 | 112.3 |
| 40 | 80 | 11.3 | 22.6 | 33.9 | 45.2 | 56.5 | 67.9 | 79.2 | 90.5 | 101.8 | 113.1 | 124.4 |
| 42 | 72 | 12.5 | 24.9 | 37.4 | 49.9 | 62.3 | 74.8 | 87.3 | 99.8 | 112.2 | 124.7 | 137.2 |
| 45 | 63 | 14.3 | 28.6 | 42.9 | 57.3 | 71.6 | 85.9 | 100.2 | 114.5 | 128.8 | 143.1 | 157.5 |
| 48 | 55 | 16.3 | 32.6 | 48.9 | 65.1 | 81.4 | 97.7 | 114.0 | 130.3 | 146.6 | 162.9 | 179.1 |
| 50 | 51 | 17.7 | 35.3 | 53.0 | 70.7 | 88.4 | 106.0 | 123.7 | 141.4 | 159.0 | 176.7 | 194.4 |
| 52 | 47 | 19.1 | 38.2 | 57.3 | 76.5 | 95.6 | 114.7 | 133.8 | 152.9 | 172.0 | 191.1 | 210.2 |
| 55 | 42 | 21.4 | 42.8 | 64.1 | 85.5 | 106.9 | 128.3 | 149.7 | 171.1 | 192.4 | 213.8 | 235.2 |
| 58 | 38 | 23.8 | 47.6 | 71.3 | 95.1 | 118.9 | 142.7 | 166.5 | 190.2 | 214.0 | 237.8 | |
| 60 | 35 | 25.4 | 50.9 | 76.3 | 101.8 | 127.2 | 152.7 | 178.1 | 203.6 | 229.0 | ||
