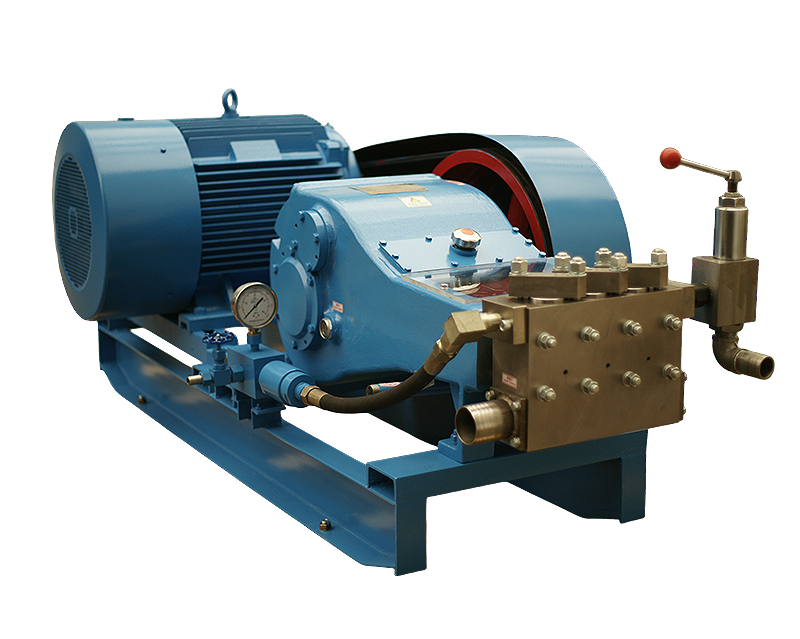

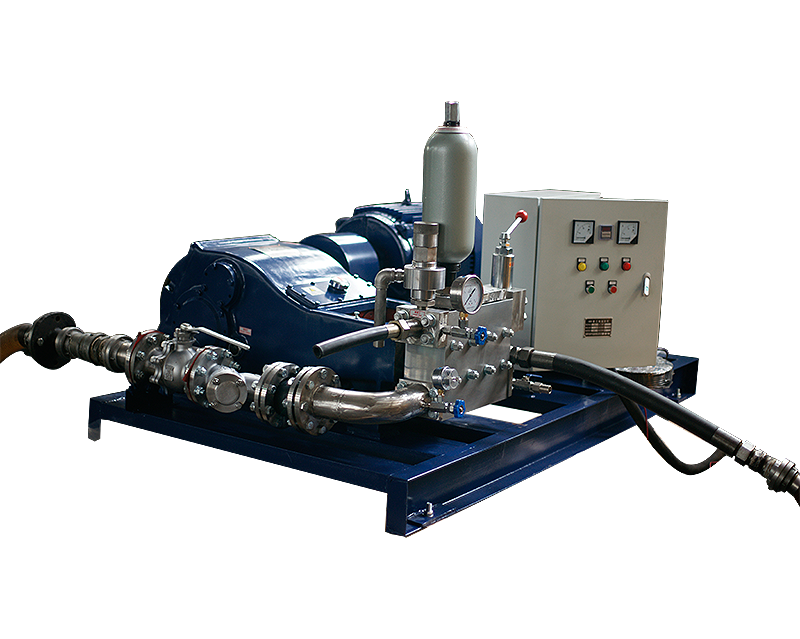

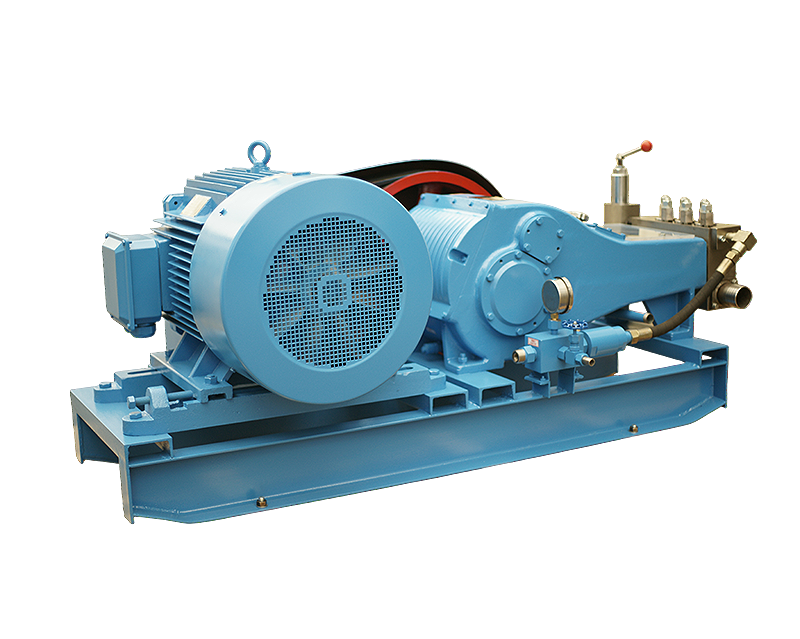

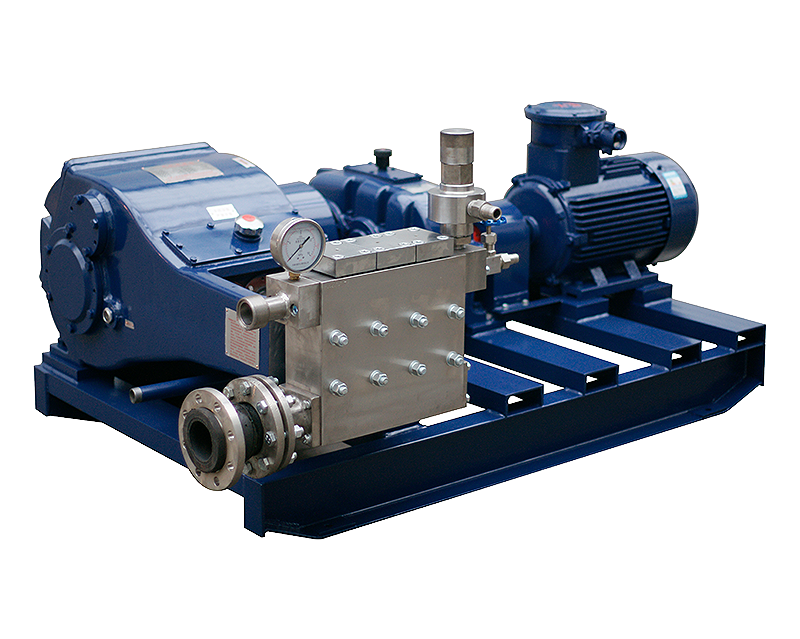

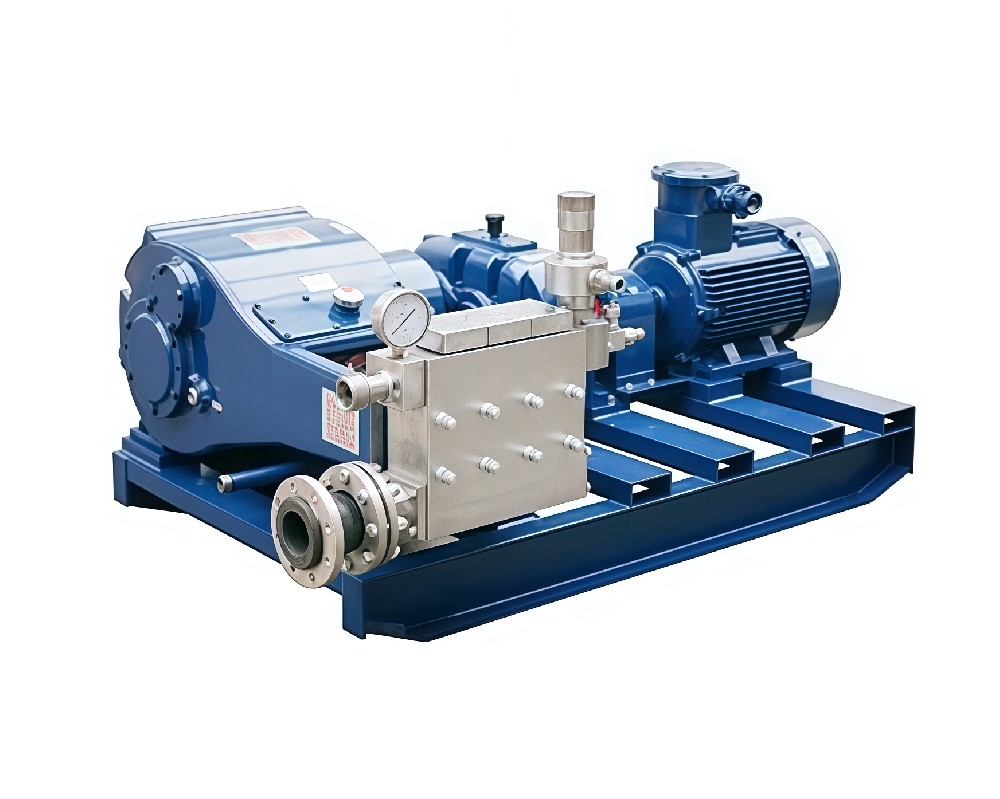

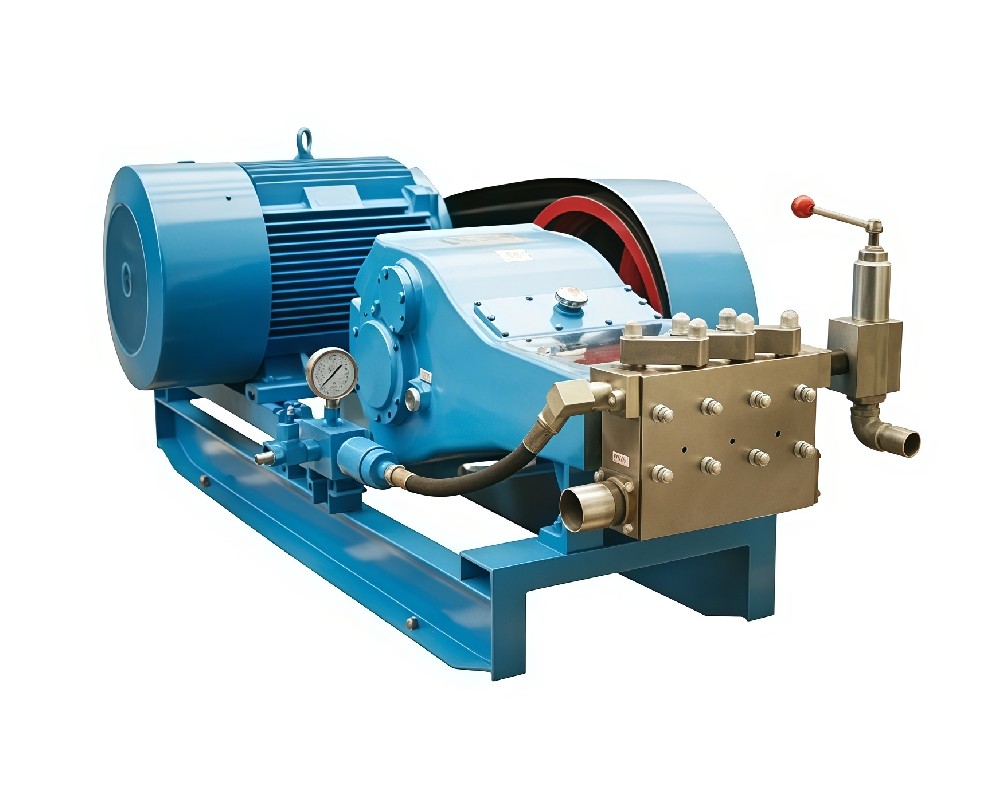

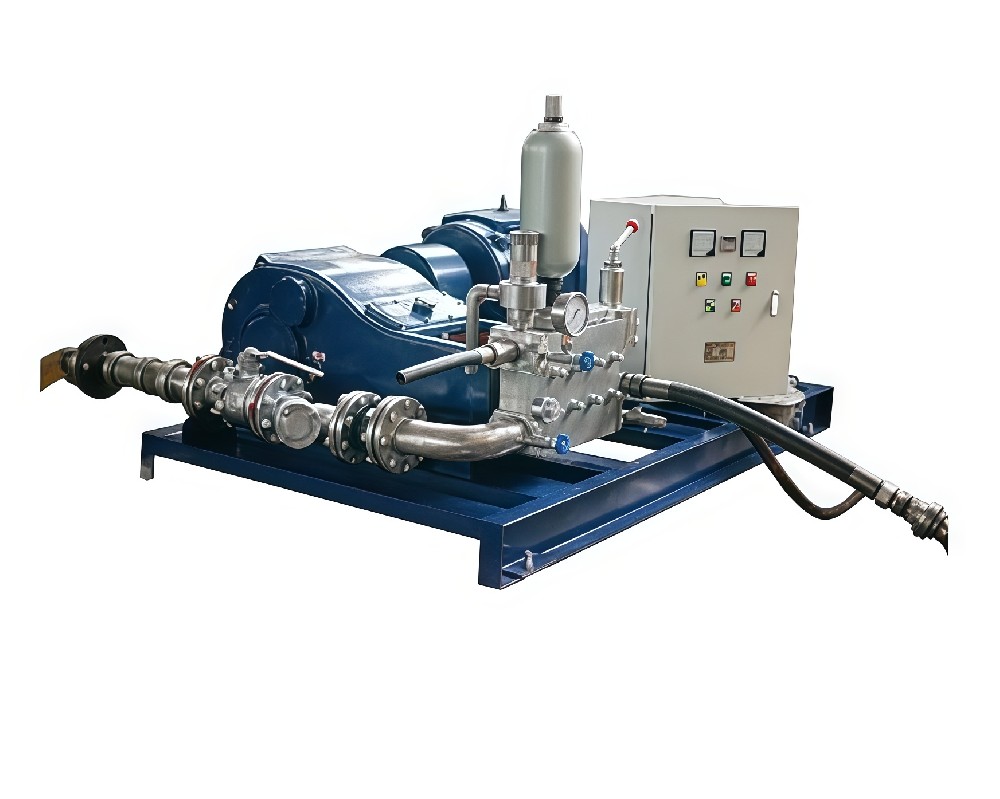

Plunger Pump

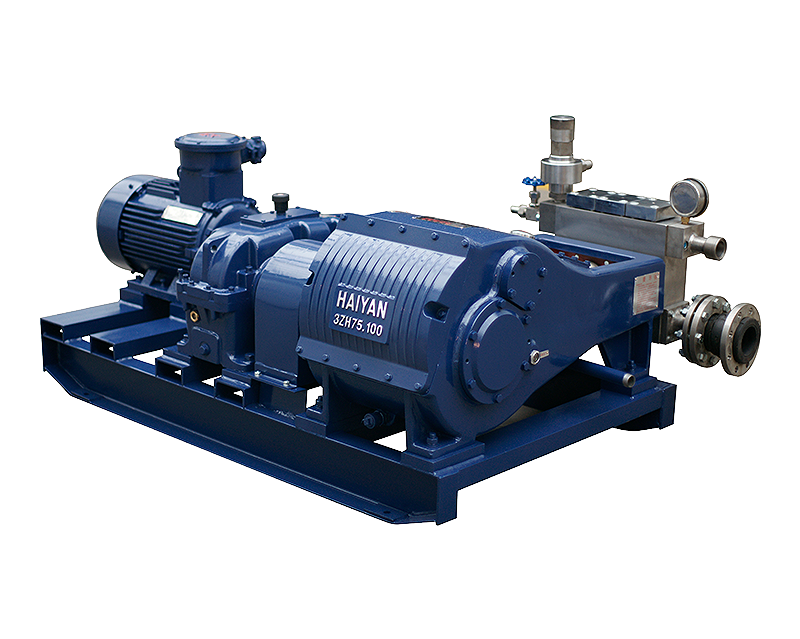

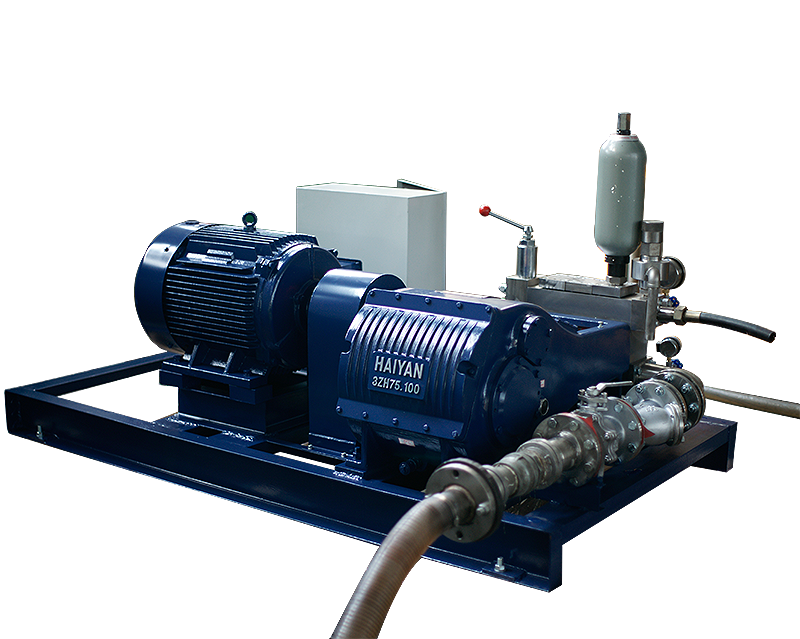

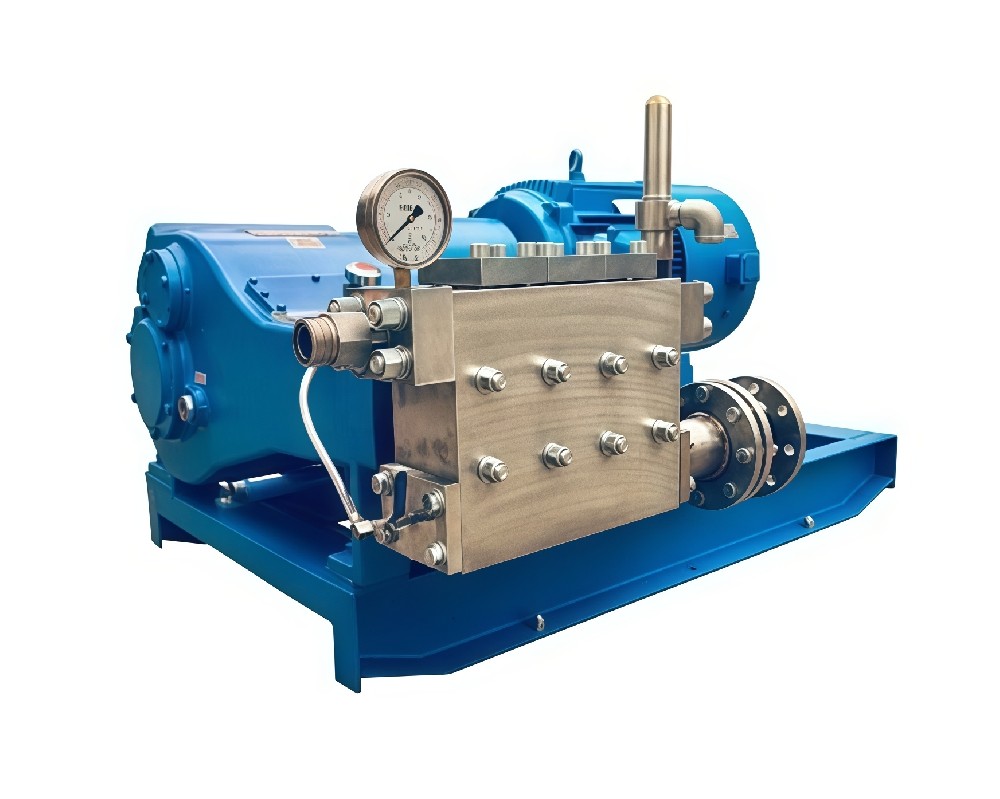

3ZH75.100
Stroke Length (mm) ：100
Crankcase Oil Capacity (L)：18.5
Pump Weight (KG)： 485
Recommended SPM for Continuous Duty： ≤350
Standard Gear Ratio：4.25
Optional Gear Ratio：3.47
| Strokes per Minute | 75 | 125 | 175 | 225 | 275 | 325 | 375 | 425 | 475 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 10.5 | 17.5 | 24.5 | 31.5 | 38.6 | 45.6 | 52.6 | 59.6 | 66.6 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | ||||||||
| 14 | 1624 | 3.5 | 5.8 | 8.1 | 10.4 | 12.7 | 15.0 | 17.3 | 19.6 | 21.9 |
| 16 | 1244 | 4.5 | 7.5 | 10.6 | 13.6 | 16.6 | 19.6 | 22.6 | 25.6 | 28.7 |
| 18 | 983 | 5.7 | 9.5 | 13.4 | 17.2 | 21.0 | 24.8 | 28.6 | 32.4 | 36.3 |
| 20 | 796 | 7.1 | 11.8 | 16.5 | 21.2 | 25.9 | 30.6 | 35.3 | 40.1 | 44.8 |
| 23 | 602 | 9.3 | 15.6 | 21.8 | 28.0 | 34.3 | 40.5 | 46.7 | 53.0 | 59.2 |
| 25 | 509 | 11.0 | 18.4 | 25.8 | 33.1 | 40.5 | 47.9 | 55.2 | 62.6 | 69.9 |
| 30 | 354 | 15.9 | 26.5 | 37.1 | 47.7 | 58.3 | 68.9 | 79.5 | 90.1 | 100.7 |
| 32 | 311 | 18.1 | 30.2 | 42.2 | 54.3 | 66.4 | 78.4 | 90.5 | 102.5 | 114.6 |
| 40 | 199 | 28.3 | 47.1 | 66.0 | 84.8 | 103.7 | 122.5 | 141.4 | 160.2 | 179.1 |
| 42 | 180 | 31.2 | 52.0 | 72.7 | 93.5 | 114.3 | 135.1 | 155.9 | 176.6 | 197.4 |
| 45 | 157 | 35.8 | 59.6 | 83.5 | 107.4 | 131.2 | 155.1 | 178.9 | 202.8 | 226.6 |
| 50 | 127 | 44.2 | 73.6 | 103.1 | 132.5 | 162.0 | 191.4 | 220.9 | 250.3 | 279.8 |
| 53 | 113 | 49.6 | 82.7 | 115.8 | 148.9 | 182.0 | 215.1 | 248.2 | 281.3 | 314.4 |
| 55 | 105 | 53.5 | 89.1 | 124.7 | 160.4 | 196.0 | 231.6 | 267.3 | 302.9 | 338.6 |
| 58 | 95 | 59.4 | 99.1 | 138.7 | 178.3 | 218.0 | 257.6 | 297.2 | 336.9 | 376.5 |
| 62 | 83 | 67.9 | 113.2 | 158.5 | 203.8 | 249.1 | 294.4 | 339.6 | 384.9 | 430.2 |
| 65 | 75 | 74.7 | 124.4 | 174.2 | 224.0 | 273.8 | 323.5 | 373.3 | 423.1 | |
| 68 | 69 | 81.7 | 136.2 | 190.7 | 245.1 | 299.6 | 354.1 | 408.6 | ||
| 70 | 65 | 86.6 | 144.3 | 202.0 | 259.8 | 317.5 | 375.2 | 433.0 | ||
| 72 | 61 | 91.6 | 152.7 | 213.8 | 274.8 | 335.9 | 397.0 | 458.0 | ||
