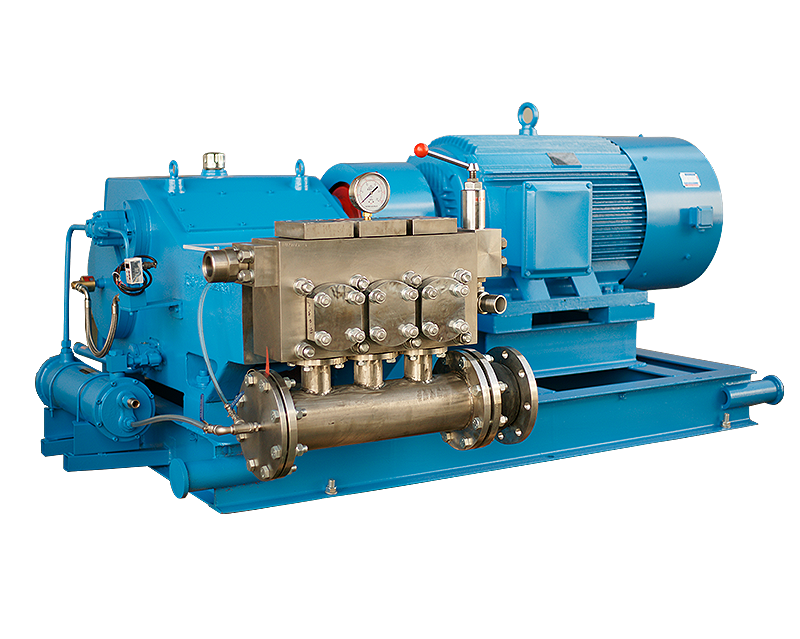

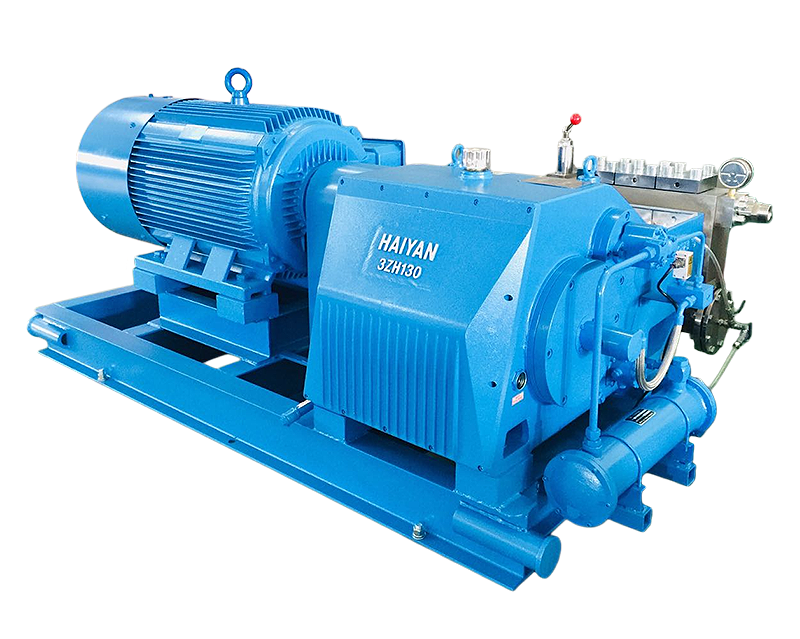

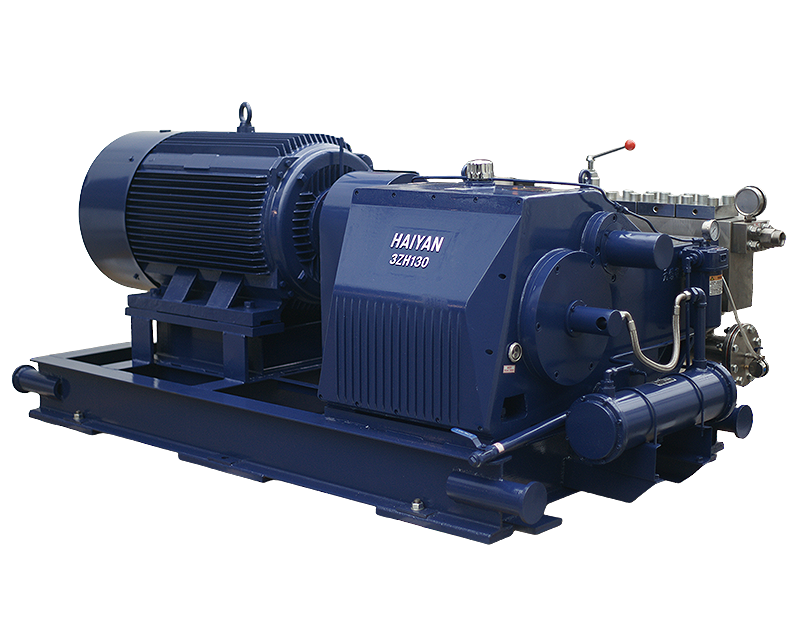

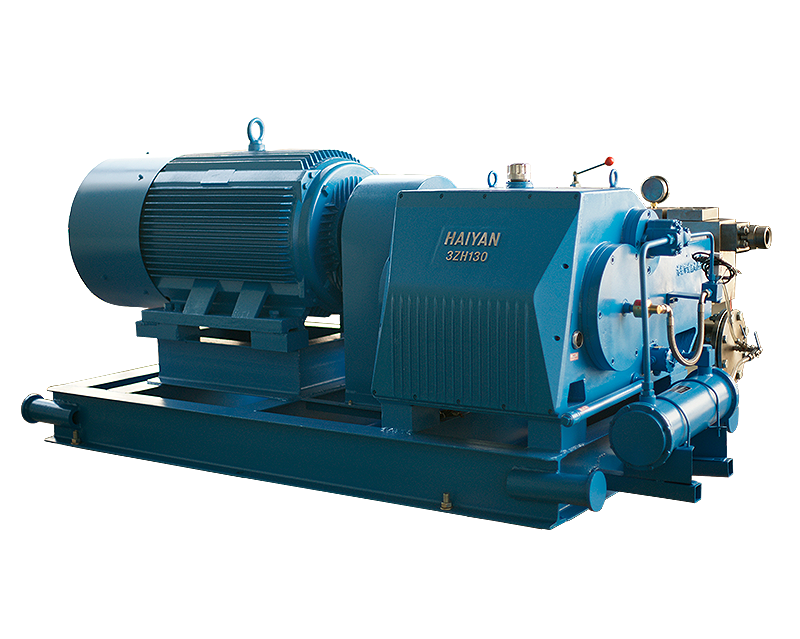

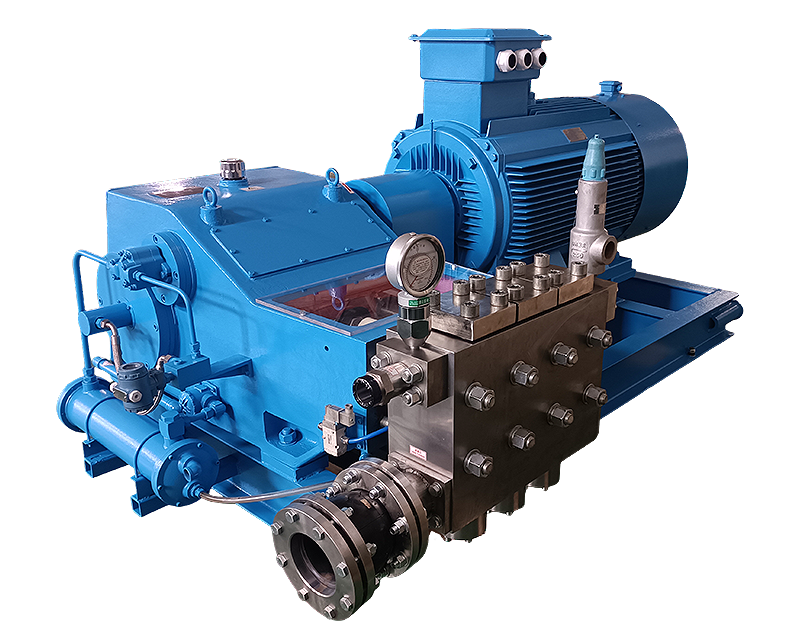

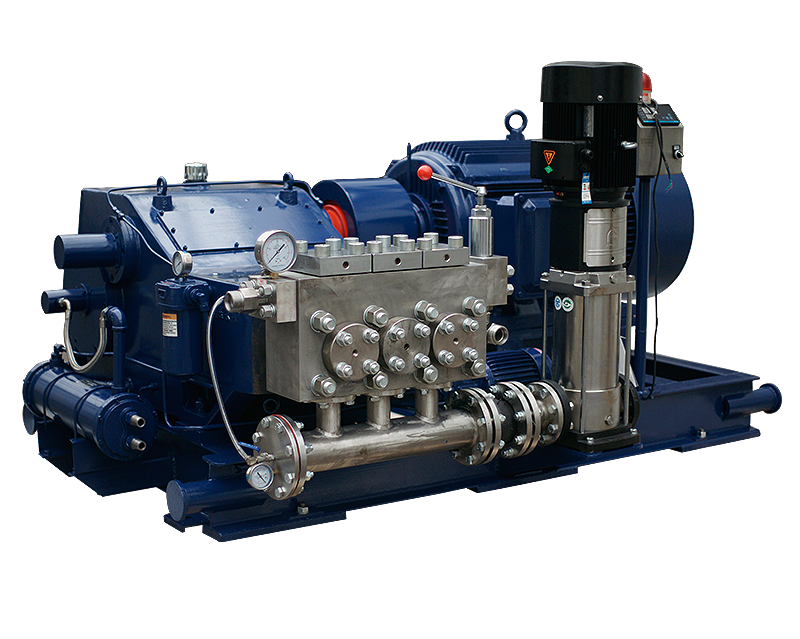

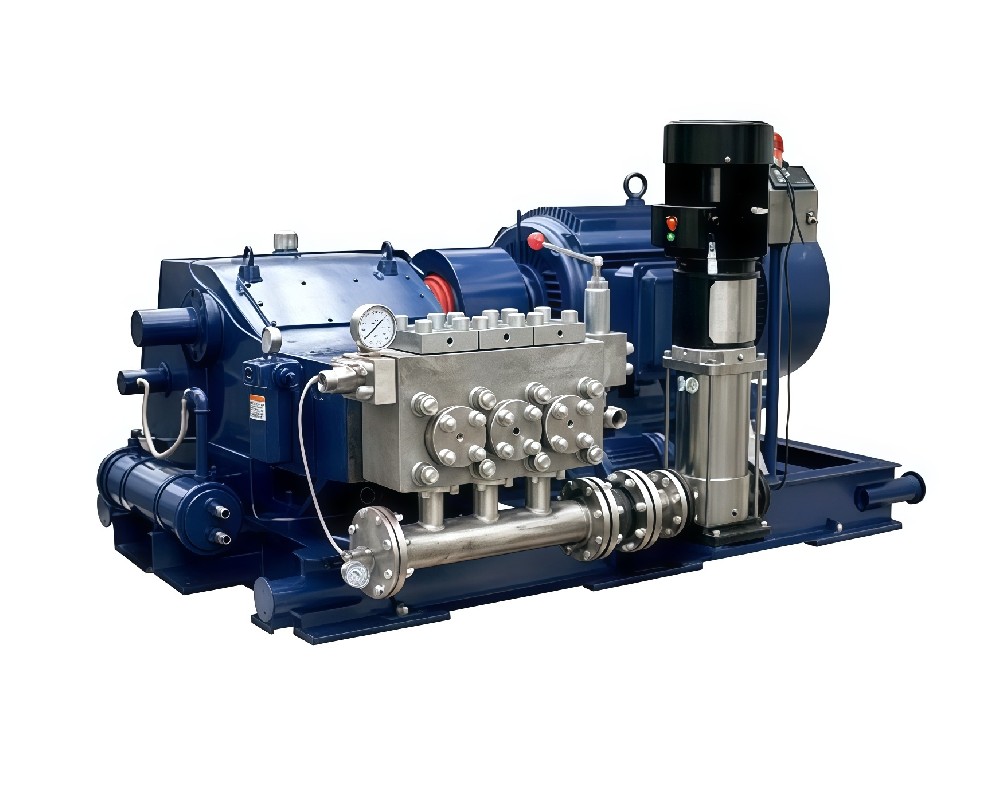

Plunger Pump
3ZH130
Stroke Length (mm) ：130
Crankcase Oil Capacity (L)：72.6
Pump Weight (KG)： 941
Recommended SPM for Continuous Duty： ≤302
Standard Gear Ratio：4.53
Optional Gear Ratio：3.90
Optional Gear Ratio：3.26
| Strokes per Minute | 75 | 125 | 175 | 225 | 275 | 325 | 375 | 425 | 450 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 52.0 | 86.6 | 121.2 | 155.9 | 190.5 | 225.1 | 259.8 | 294.4 | 311.7 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | ||||||||
| 55 | 400 | 69.5 | 115.8 | 162.2 | 208.5 | 254.8 | 301.1 | 347.5 | 393.8 | 417.0 |
| 58 | 360 | 77.3 | 128.8 | 180.3 | 231.8 | 283.4 | 334.9 | 386.4 | 437.9 | 463.7 |
| 60 | 336 | 82.7 | 137.8 | 193.0 | 248.1 | 303.2 | 358.4 | 413.5 | 468.6 | 496.2 |
| 62 | 315 | 88.3 | 147.2 | 206.1 | 264.9 | 323.8 | 382.7 | 441.5 | 500.4 | 529.8 |
| 63 | 305 | 91.2 | 152.0 | 212.8 | 273.5 | 334.3 | 395.1 | 455.9 | 516.7 | 547.1 |
| 65 | 286 | 97.1 | 161.8 | 226.5 | 291.2 | 355.9 | 420.6 | 485.3 | 550.0 | 582.4 |
| 68 | 262 | 106.2 | 177.0 | 247.9 | 318.7 | 389.5 | 460.3 | 531.1 | 602.0 | 637.4 |
| 70 | 247 | 112.6 | 187.6 | 262.7 | 337.7 | 412.7 | 487.8 | 562.8 | 637.9 | 675.4 |
| 72 | 233 | 119.1 | 198.5 | 277.9 | 357.3 | 436.7 | 516.1 | 595.5 | 674.9 | 714.6 |
| 75 | 215 | 129.2 | 215.4 | 301.5 | 387.7 | 473.8 | 560.0 | 646.1 | 732.3 | 775.3 |
| 80 | 189 | 147.0 | 245.0 | 343.1 | 441.1 | 539.1 | 637.1 | 735.1 | 833.2 | |
| 82 | 180 | 154.5 | 257.5 | 360.4 | 463.4 | 566.4 | 669.4 | 772.4 | ||
| 86 | 164 | 169.9 | 283.2 | 396.5 | 509.7 | 623.0 | 736.3 | |||
| 90 | 149 | 186.1 | 310.1 | 434.2 | 558.2 | 682.3 | 806.4 | |||
