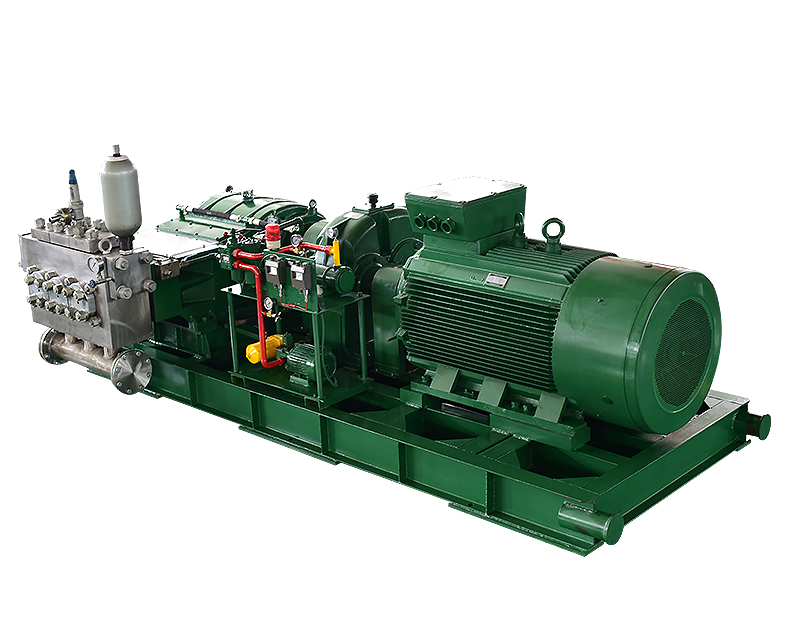

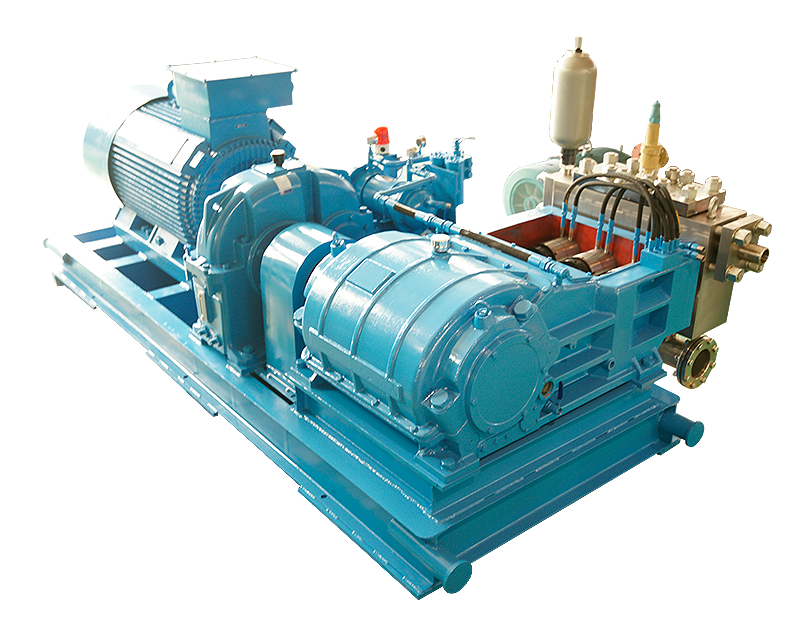

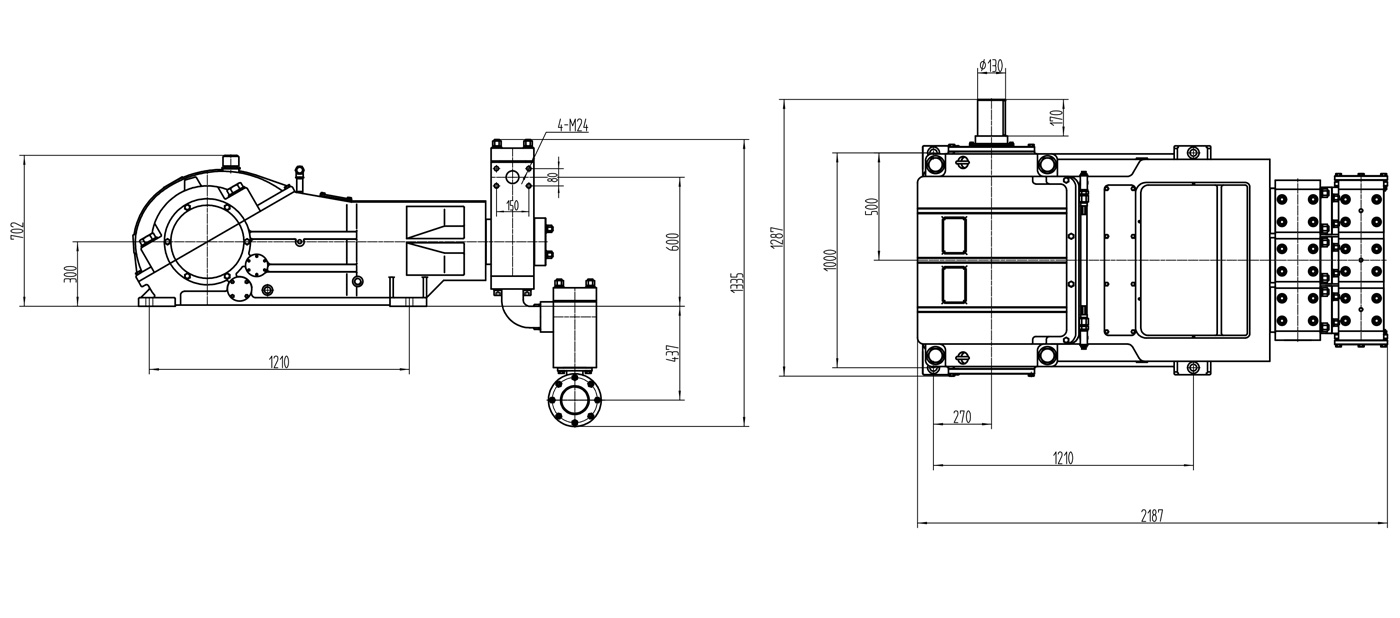

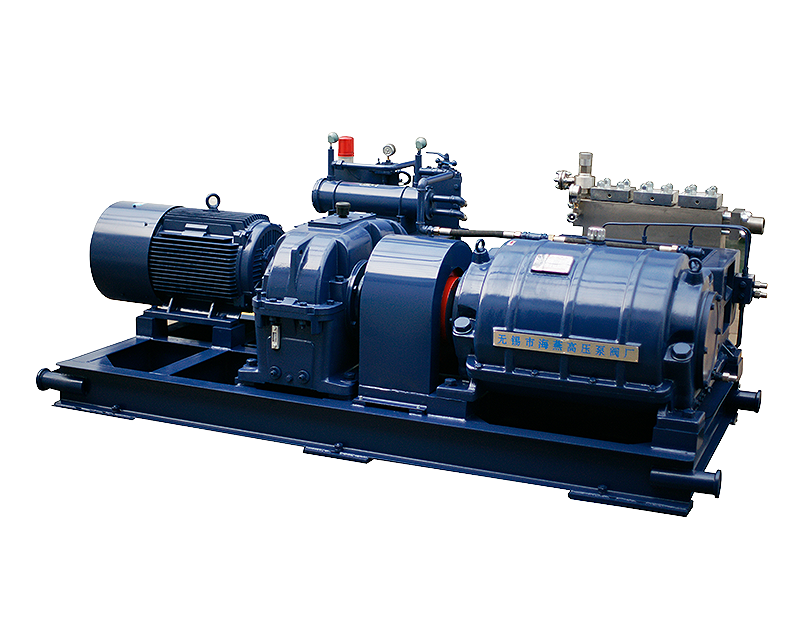

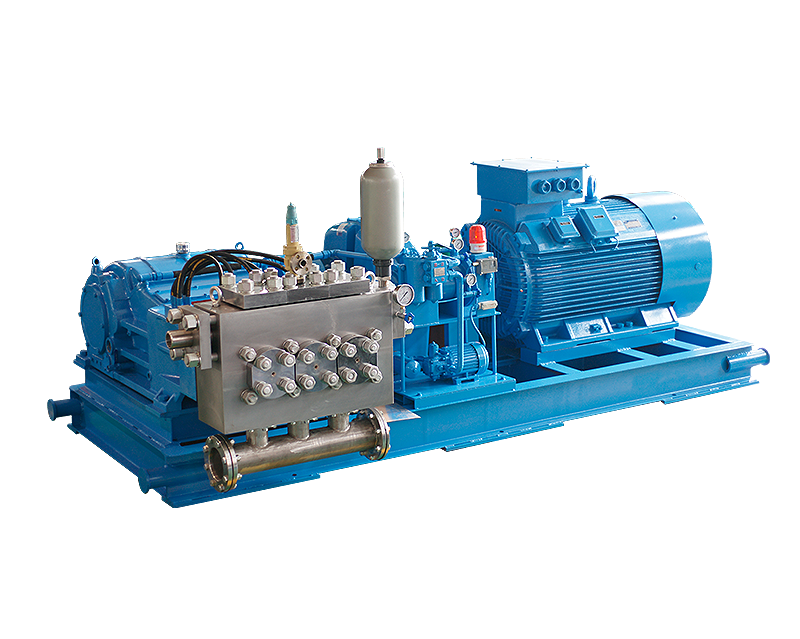

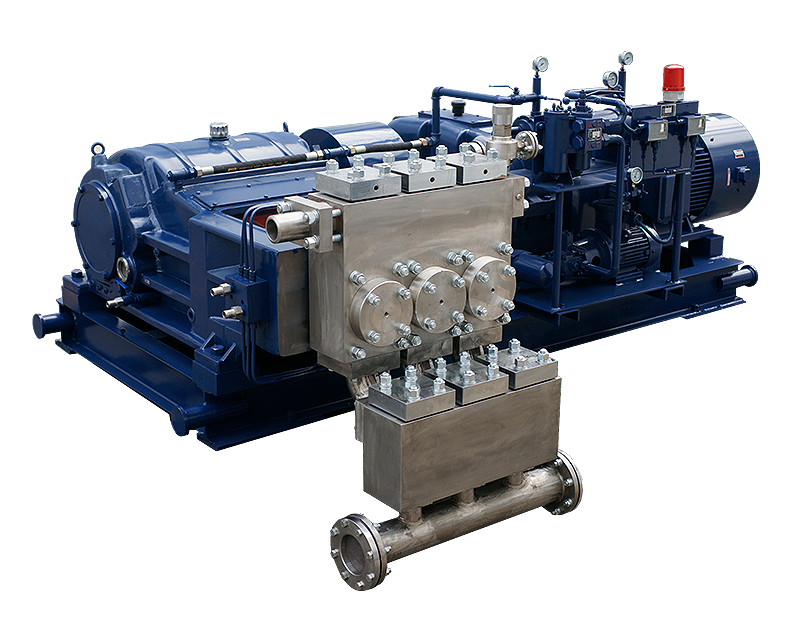

Plunger Pump
A150
Stroke Length (mm) ：150
Crankcase Oil Capacity (L)：100
Pump Weight (KG)： 3286
Recommended SPM for Continuous Duty： ≤270
| Strokes per Minute | 75 | 83 | 93 | 106 | 119 | 133 | 149 | 166 | 186 | 210 | 237 | 266 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 75.7 | 83.8 | 93.9 | 107.0 | 120.2 | 134.3 | 150.4 | 167.6 | 187.8 | 212.0 | 239.3 | 268.6 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | |||||||||||
| 60 | 424 | 95.4 | 105.6 | 118.3 | 134.9 | 151.4 | 169.2 | 189.6 | 211.2 | 236.7 | 267.2 | 301.5 | 338.4 |
| 65 | 362 | 112.0 | 123.9 | 138.9 | 158.3 | 177.7 | 169.2 | 222.5 | 247.9 | 277.7 | 313.6 | 353.9 | 397.2 |
| 70 | 312 | 129.9 | 143.7 | 161.1 | 183.6 | 206.1 | 230.3 | 258.0 | 287.5 | 322.1 | 363.7 | 410.4 | 460.7 |
| 75 | 272 | 149.1 | 165.0 | 184.9 | 210.7 | 236.6 | 264.4 | 296.2 | 330.0 | 369.8 | 417.5 | 471.2 | 528.8 |
| 80 | 239 | 169.6 | 187.7 | 210.4 | 239.8 | 269.2 | 300.8 | 337.0 | 375.5 | 420.7 | 475.0 | 536.1 | 601.7 |
| 85 | 211 | 191.5 | 211.9 | 237.5 | 270.7 | 303.9 | 339.6 | 380.5 | 423.9 | 475.0 | 536.2 | 605.2 | 679.2 |
| 90 | 189 | 214.7 | 237.6 | 266.2 | 303.5 | 340.7 | 380.8 | 426.6 | 475.2 | 532.5 | 601.2 | 678.5 | 761.5 |
| 95 | 169 | 239.2 | 264.7 | 296.6 | 338.1 | 379.6 | 424.2 | 475.3 | 529.5 | 593.3 | 669.8 | 756.0 | 848.5 |
| 100 | 153 | 265.1 | 293.3 | 328.7 | 374.6 | 420.6 | 470.1 | 526.6 | 586.7 | 657.4 | 742.2 | 837.6 | 940.1 |
| 105 | 139 | 292.2 | 323.4 | 362.4 | 413.0 | 463.7 | 518.2 | 580.6 | 646.8 | 724.8 | 818.3 | 923.5 | 1036.5 |
| 110 | 126 | 320.7 | 354.9 | 397.7 | 453.3 | 508.9 | 568.8 | 637.2 | 709.9 | 795.4 | 898.1 | 1013.5 | |
| 115 | 116 | 350.6 | 388.0 | 434.7 | 495.5 | 556.2 | 621.7 | 696.4 | 775.9 | 869.4 | 981.6 | ||
| 120 | 106 | 381.7 | 422.4 | 473.3 | 539.5 | 605.6 | 676.9 | 758.3 | 844.8 | 946.6 | 1068.8 | ||
| 125 | 98 | 414.2 | 458.4 | 513.6 | 585.4 | 657.2 | 734.5 | 822.8 | 916.7 | 1027.2 | |||
| 130 | 90 | 448.0 | 495.8 | 555.5 | 633.1 | 710.8 | 794.4 | 890.0 | 991.5 | ||||
Company Profile
About Us
News
-
Work Specifications:Wuxi Petrel supplied BAOSTEEL with descaling pumps which are originally designed···
READ MORE -
Work Specifications:Wuxi Petrel supplied NETZSCH with industrial pumps which are originally designed···
READ MORE -
Work Specifications:Since 2009, Wuxi Petrel has been serving as an OEM for Weatherford's W-serie···
READ MORE -

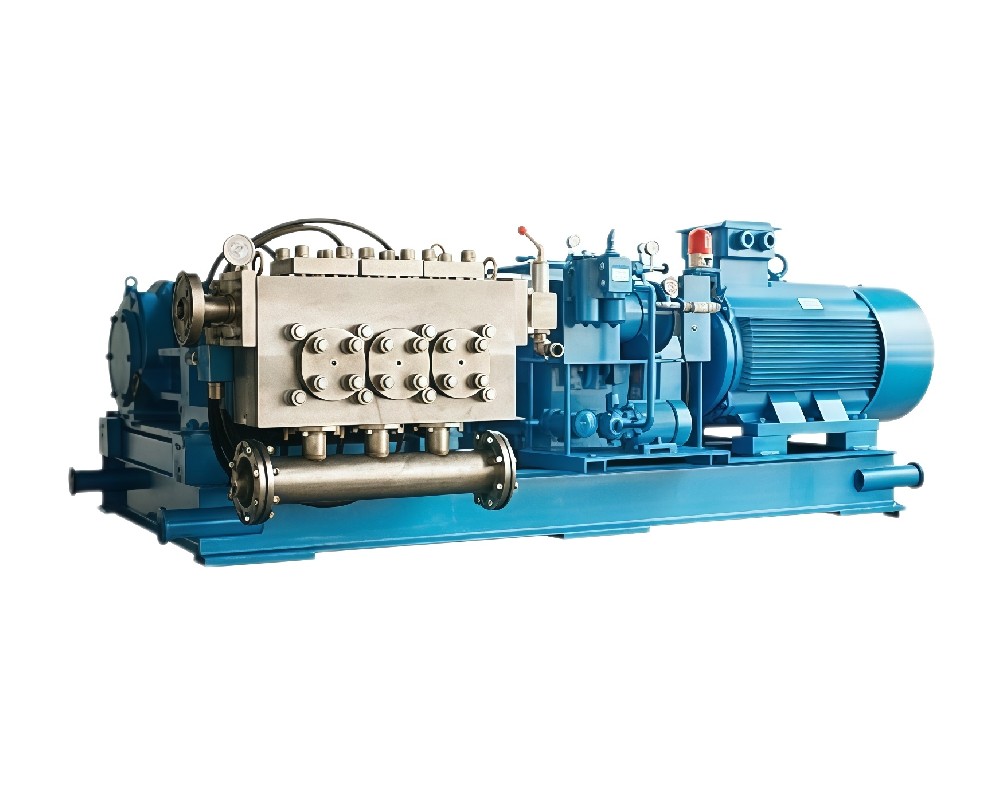

Another widely used industry for our 5ZW100 pump is Metal Powder Atomization. This 450KW high pressu···
