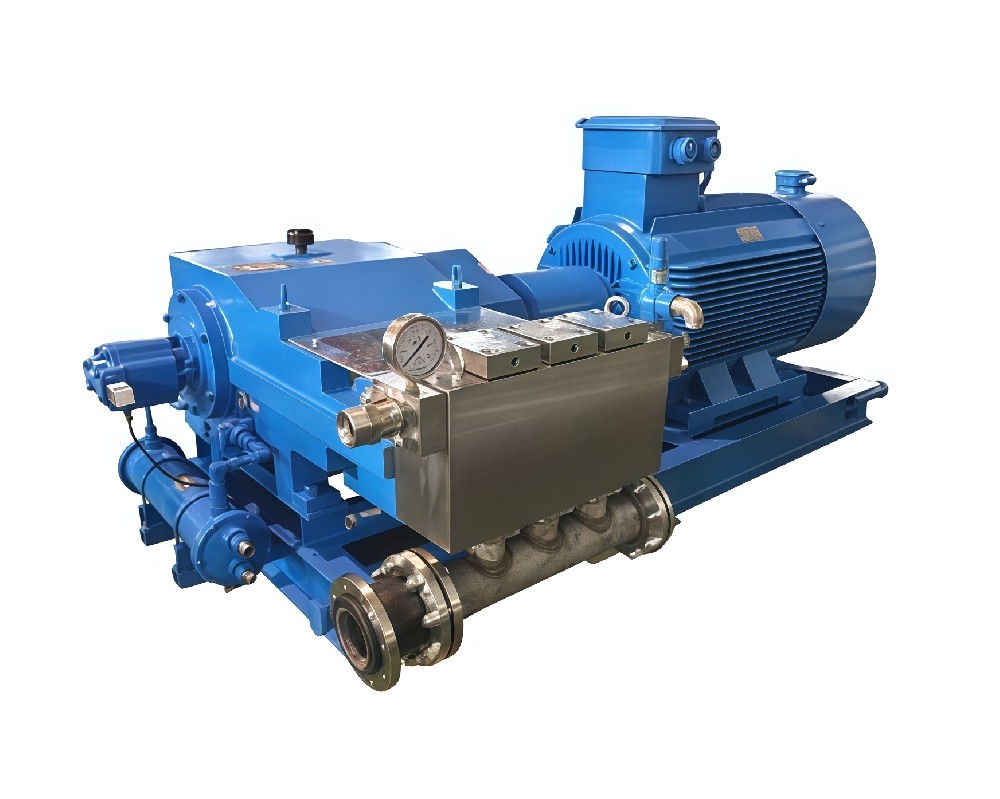

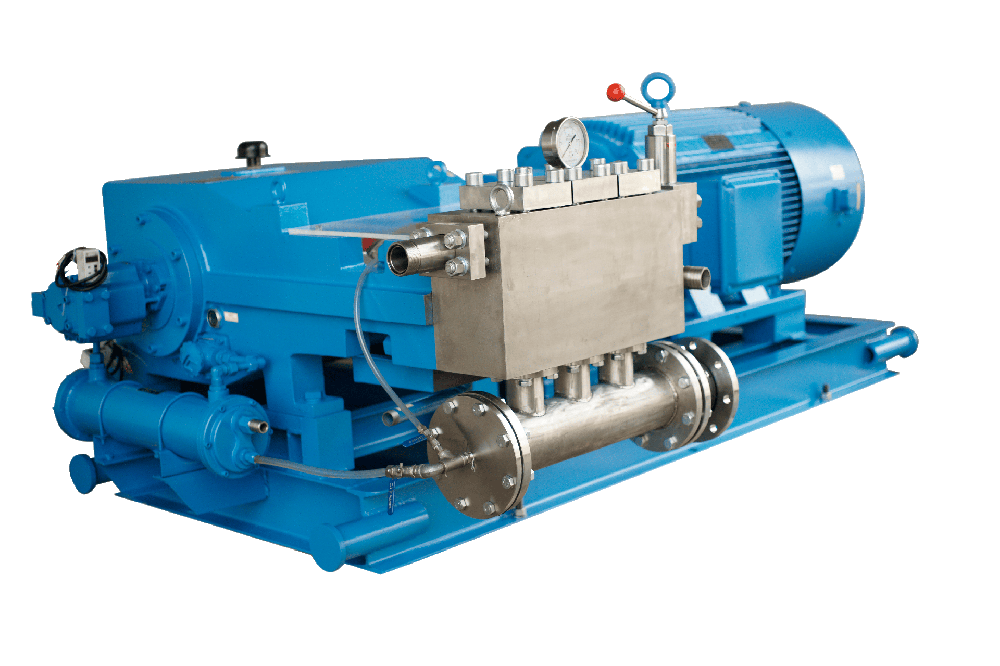

3ZW100-Plunger Pump-Wuxi Haiyan High-pressure Valve Factory

3ZW100

Stroke Length (mm) ：100
Crankcase Oil Capacity (L)：49
Pump Weight (KG)： 1560
Recommended SPM for Continuous Duty： ≤350
Standard Gear Ratio：4.28
Optional Gear Ratio：3.70
Optional Gear Ratio：3.27

	Strokes per Minute	75	125	175	225	275	325	375	425	450
	Input Power (kw)	42.1	70.1	98.2	126.2	154.3	182.3	210.4	238.4	252.4
Plunger Size(mm)	Rated Pressure(bar)	Rated Capacity(L/min)
55	421	53.5	89.1	124.7	160.4	196.0	231.6	267.3	302.9	320.7
58	379	59.4	99.1	138.7	178.3	218.0	257.6	297.2	336.9	356.7
60	354	63.6	106.0	148.4	190.9	233.3	275.7	318.1	360.5	381.7
62	331	67.9	113.2	158.5	203.8	249.1	294.4	339.6	384.9	407.6
63	321	70.1	116.9	163.7	210.4	257.2	303.9	350.7	397.4	420.8
65	301	74.7	124.4	174.2	224.0	273.8	323.5	373.3	423.1	448.0
68	275	81.7	136.2	190.7	245.1	299.6	354.1	408.6	463.0	490.3
70	260	86.6	144.3	202.0	259.8	317.5	375.2	433.0	490.7	519.5
72	246	91.6	152.7	213.8	274.8	335.9	397.0	458.0	519.1	549.7
75	226	99.4	165.7	231.9	298.2	364.5	430.7	497.0	563.3	596.4
78	209	107.5	179.2	250.9	322.5	394.2	465.9	537.6	609.2	645.1
80	199	113.1	188.5	263.9	339.3	414.7	490.1	565.5	640.9	678.6
82	189	118.8	198.0	277.3	356.5	435.7	514.9	594.1	673.3	712.9
86	172	130.7	217.8	305.0	392.1	479.2	566.4	653.5	740.6	784.2
90	157	143.1	238.6	334.0	429.4	524.8	620.3	715.7	811.1

Strokes per Minute

125

175

225

275

325

375

425

450

Input Power (kw)

42.1

70.1

98.2

126.2

154.3

182.3

210.4

238.4

252.4

Plunger Size(mm)

Rated Pressure(bar)

Rated Capacity(L/min)

421

53.5

89.1

124.7

160.4

196.0

231.6

267.3

302.9

320.7

379

59.4

99.1

138.7

178.3

218.0

257.6

297.2

336.9

356.7

354

63.6

106.0

148.4

190.9

233.3

275.7

318.1

360.5

381.7

331

67.9

113.2

158.5

203.8

249.1

294.4

339.6

384.9

407.6

321

70.1

116.9

163.7

210.4

257.2

303.9

350.7

397.4

420.8

301

74.7

124.4

174.2

224.0

273.8

323.5

373.3

423.1

448.0

275

81.7

136.2

190.7

245.1

299.6

354.1

408.6

463.0

490.3

260

86.6

144.3

202.0

259.8

317.5

375.2

433.0

490.7

519.5

246

91.6

152.7

213.8

274.8

335.9

397.0

458.0

519.1

549.7

226

99.4

165.7

231.9

298.2

364.5

430.7

497.0

563.3

596.4

209

107.5

179.2

250.9

322.5

394.2

465.9

537.6

609.2

645.1

199

113.1

188.5

263.9

339.3

414.7

490.1

565.5

640.9

678.6

189

118.8

198.0

277.3

356.5

435.7

514.9

594.1

673.3

712.9

172

130.7

217.8

305.0

392.1

479.2

566.4

653.5

740.6

784.2

157

143.1

238.6

334.0

429.4

524.8

620.3

715.7

811.1
