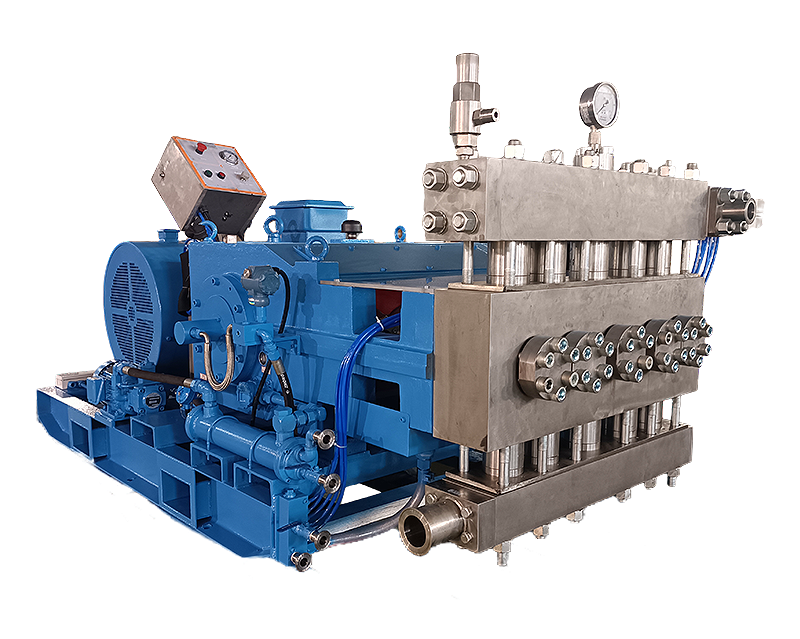

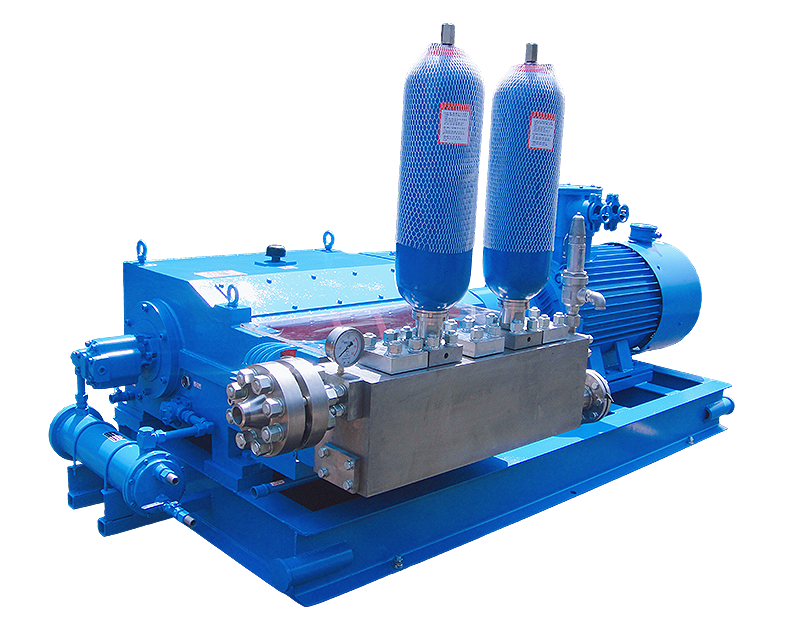

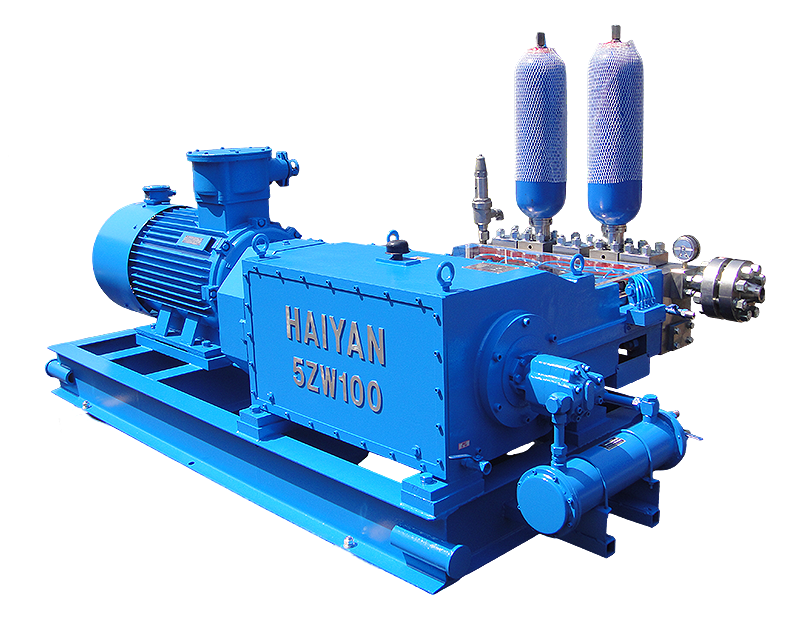

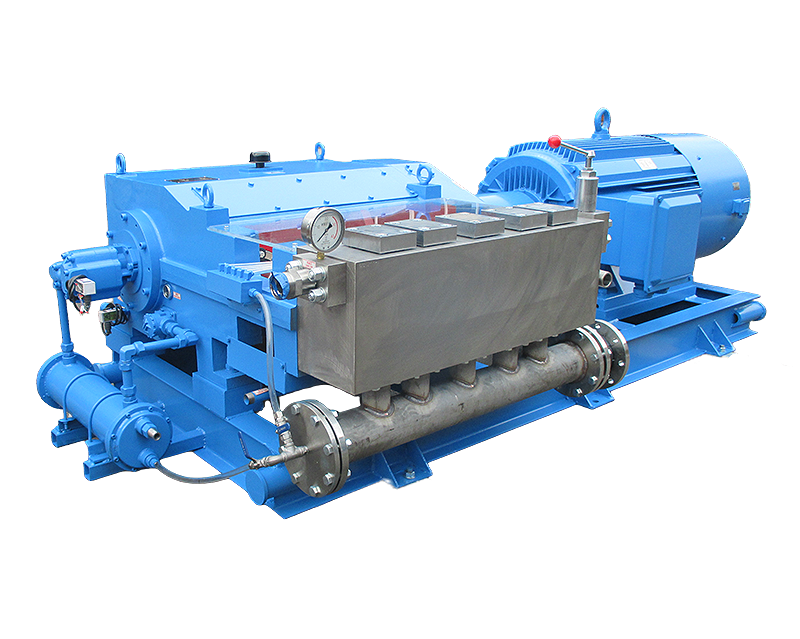

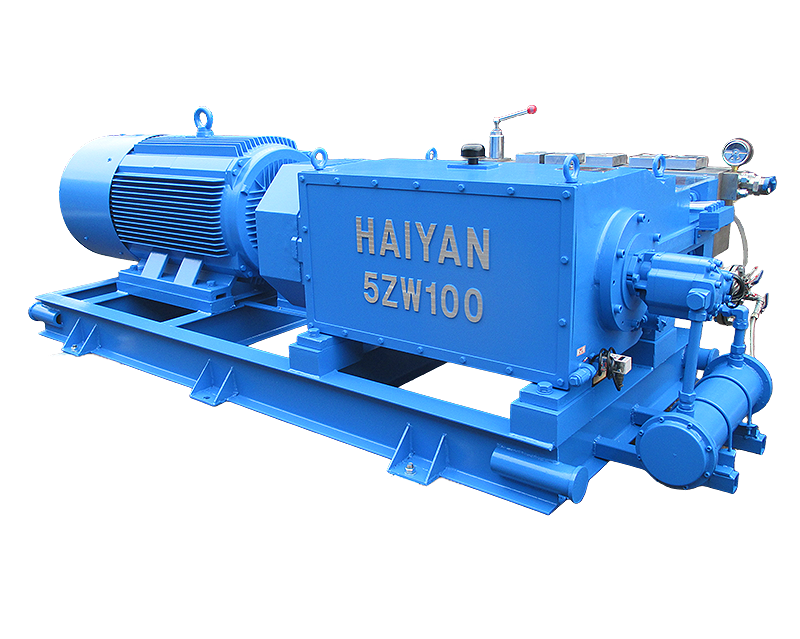

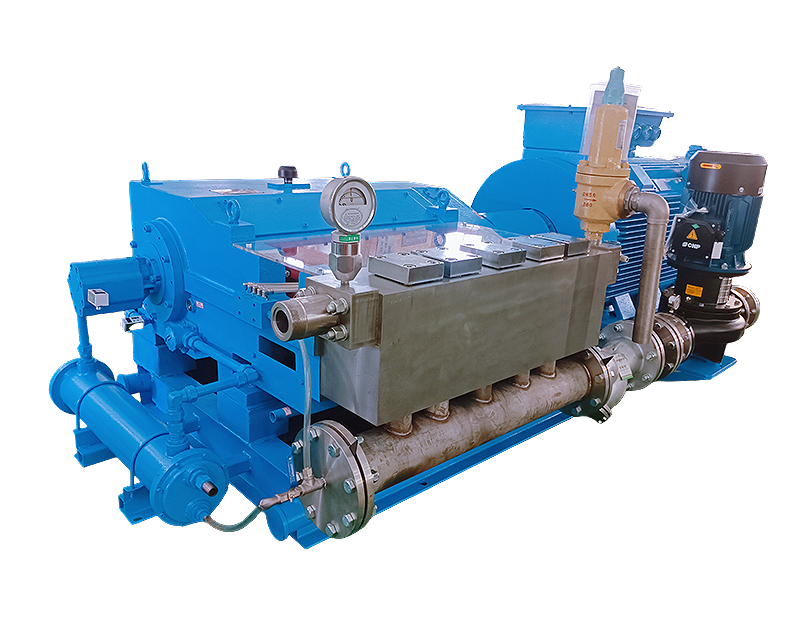

Plunger Pump
5ZW100
Stroke Length (mm) ：100
Crankcase Oil Capacity (L)：115
Pump Weight (KG)： 2655
Recommended SPM for Continuous Duty： ≤350
Standard Gear Ratio：4.28
Optional Gear Ratio：3.57
Optional Gear Ratio：3.04
| Strokes per Minute | 75 | 125 | 175 | 225 | 275 | 325 | 375 | 425 | |
|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 84.1 | 140.2 | 196.3 | 252.4 | 308.5 | 364.6 | 420.7 | 476.8 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | |||||||
| 60 | 424 | 106.0 | 176.7 | 247.4 | 318.1 | 388.8 | 459.5 | 530.1 | 600.8 |
| 62 | 398 | 113.2 | 188.7 | 264.2 | 339.6 | 415.1 | 490.6 | 566.1 | 641.6 |
| 63 | 385 | 116.9 | 194.8 | 272.8 | 350.7 | 428.6 | 506.6 | 584.5 | 662.4 |
| 65 | 362 | 124.4 | 207.4 | 290.4 | 373.3 | 456.3 | 539.2 | 622.2 | 705.1 |
| 68 | 330 | 136.2 | 227.0 | 317.8 | 408.6 | 499.4 | 590.1 | 680.9 | 771.7 |
| 70 | 312 | 144.3 | 240.5 | 336.7 | 433.0 | 529.2 | 625.4 | 721.6 | 817.8 |
| 72 | 295 | 152.7 | 254.5 | 356.3 | 458.0 | 559.8 | 661.6 | 763.4 | 865.2 |
| 75 | 272 | 165.7 | 276.1 | 386.6 | 497.0 | 607.5 | 717.9 | 828.4 | 938.8 |
| 78 | 251 | 179.2 | 298.6 | 418.1 | 537.6 | 657.0 | 776.5 | 895.9 | 1015.4 |
| 80 | 239 | 188.5 | 314.2 | 439.8 | 565.5 | 691.2 | 816.8 | 942.5 | |
| 82 | 227 | 198.0 | 330.1 | 462.1 | 594.1 | 726.1 | 858.2 | 990.2 | |
| 86 | 207 | 217.8 | 363.1 | 508.3 | 653.5 | 798.7 | 943.9 | ||
| 90 | 189 | 238.6 | 397.6 | 556.7 | 715.7 | 874.7 | |||
