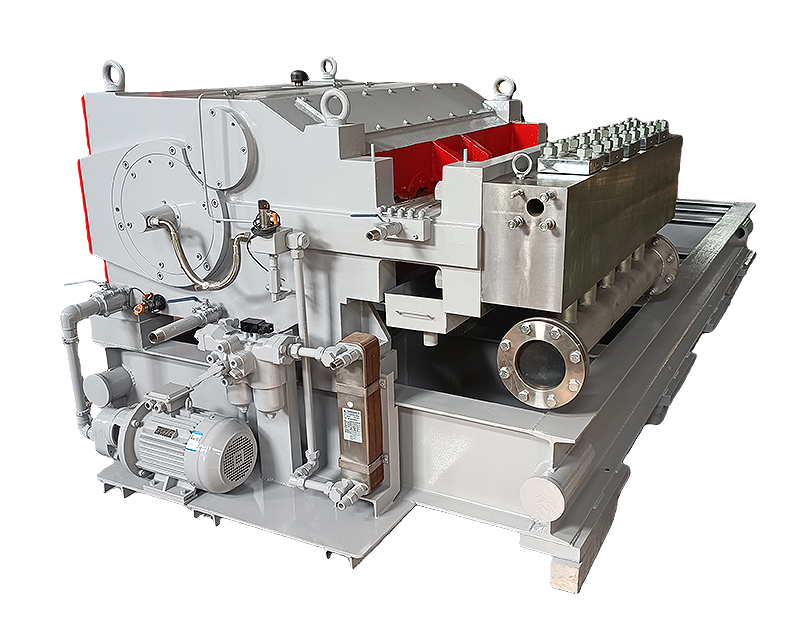

Plunger Pump

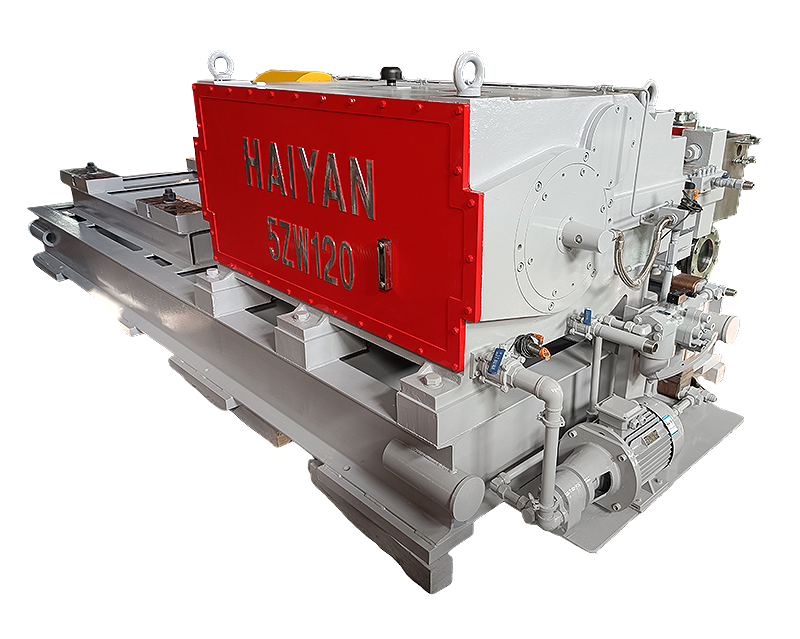

5ZW120
Stroke Length (mm) ：120
Crankcase Oil Capacity (L)：400
Pump Weight (KG)： 6102
Recommended SPM for Continuous Duty： ≤318
Standard Gear Ratio：4.56
Optional Gear Ratio：4.06
| Strokes per Minute | 75 | 125 | 175 | 225 | 275 | 325 | 375 | |
|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 134.6 | 224.3 | 314.1 | 225 | 493.6 | 583.3 | 673.0 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | ||||||
| 70 | 416 | 173.2 | 288.6 | 404.1 | 519.5 | 635.0 | 750.4 | 865.9 |
| 72 | 393 | 183.2 | 305.4 | 427.5 | 549.7 | 671.8 | 793.9 | 916.1 |
| 75 | 362 | 198.8 | 331.3 | 463.9 | 596.4 | 728.9 | 861.5 | 994.0 |
| 78 | 335 | 215.0 | 358.4 | 501.7 | 645.1 | 788.4 | 931.8 | 1075.1 |
| 80 | 318 | 226.2 | 377.0 | 527.8 | 678.6 | 829.4 | 980.2 | 1131.0 |
| 86 | 275 | 261.4 | 435.7 | 609.9 | 784.2 | 958.5 | 1132.7 | 1307.0 |
| 90 | 252 | 286.3 | 477.1 | 668.0 | 858.8 | 1049.7 | 1240.5 | 1431.4 |
| 95 | 226 | 319.0 | 531.6 | 744.3 | 956.9 | 1169.6 | 1382.2 | 1594.9 |
| 100 | 204 | 353.4 | 589.1 | 824.7 | 1060.3 | 1295.9 | 1531.5 | 1767.2 |
| 105 | 185 | 389.7 | 649.4 | 909.2 | 1169.0 | 1428.7 | 1688.5 | |
| 110 | 168 | 427.7 | 712.8 | 997.9 | 1283.0 | 1568.1 | ||
| 115 | 154 | 467.4 | 779.0 | 1090.6 | 1402.2 | 1713.8 | ||
| 120 | 141 | 508.9 | 848.2 | 1187.5 | 1526.8 | |||
